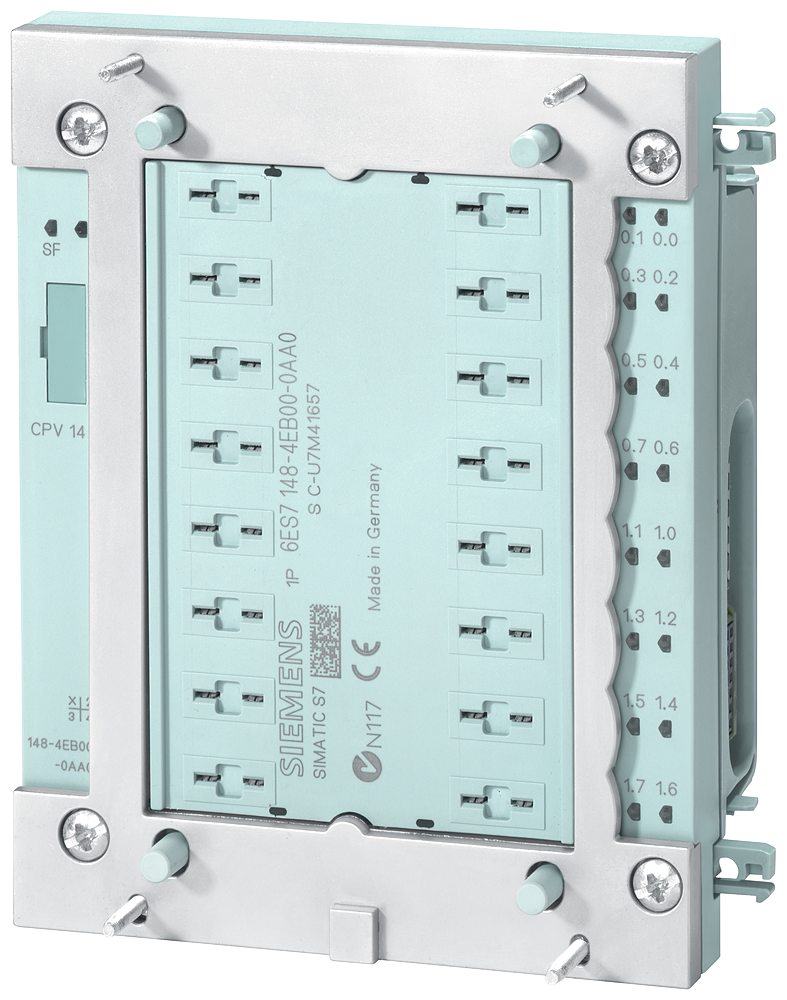

SIMATIC ET 200pro 16DQ 24 V DC CPV14
SKU: 6ES7148-4EB00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, pneumatic interface for ET 200 PRO, 16 DO pneumatics for connecting with Festo valve terminal CPV-14, including bus module.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage, Load voltage 2L+:
Rated value (DC): 24 V.
Short-circuit protection.
Reverse polarity protection.
Input current:
From load voltage 2L+, max: 370 mA; Including valves.
From backplane bus 3.3 V DC, max: 25 mA.
Typical power loss: 3.7 W.
Digital outputs:
Number of digital outputs: 16.
Load resistance range:
Lower limit: 500 Ω.
Upper limit: 2 500 Ω.
Output current:
For signal "1" rated value: 16 mA.
For signal "1" permissible range, min: 14 mA.
For signal "1" permissible range, max: 20 mA.
Pneumatics:
Number of connectable valves, max: 16.
Permissible working pressure, min: 3 bar.
Permissible working pressure, max: 8 bar.
Rated flow rate: 800 l/min.
Valve switching times from "0" to "1": 24 MS.
Valve switching times from "1" to "0": 30 MS.
Parameter, Remark: Diagnosis load voltage 2L+.
Isolation tested with 707 V DC (type test).
Width: 120 mm.
Height: 152 mm.
Depth: 47 mm.
