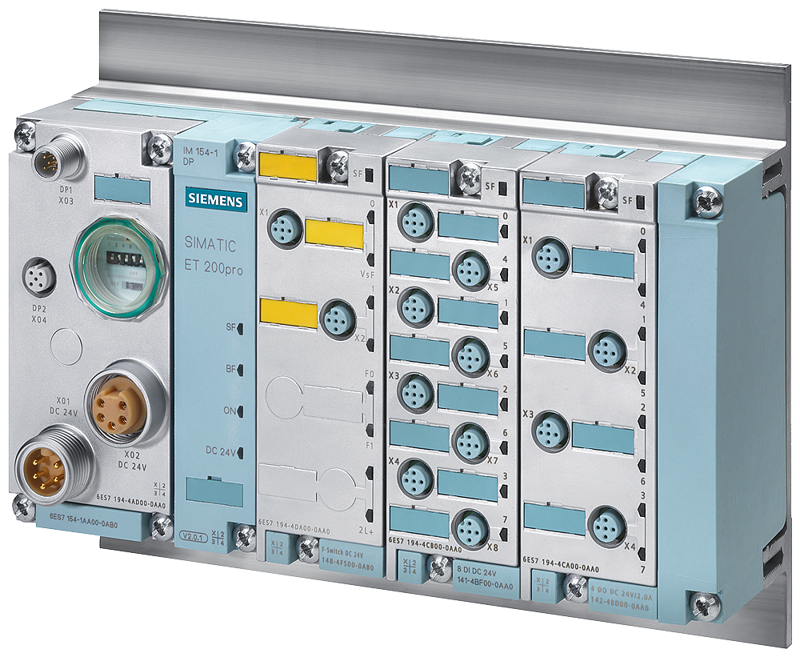

SIMATIC ET 200pro F-Switch PROFIsafe
SKU: 6ES7148-4FS00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, ET200 Pro Electronic Module that is fail-safe Three failsafe, F-switch PROFIsafe PP-switching outputs for safe backplane busbar switching (2L +, F0, F1), two fail-safe digital inputs, 45mm, up to Category 4 (EN 954-1)/SIL3 (IEC61508)/PLE (ISO13849).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage, Rated value (DC): 24 V.
Input current:
From supply voltage 1L+, max: 50 mA.
From load voltage 2L+ (without load), max: 25 mA; Typical.
From backplane bus 3.3 V DC, max: 40 mA.
Typical power loss: 3 W.
Digital inputs, Number of digital inputs: 2.
Input current for signal "1": 3.5 mA.
Digital outputs:
Number of digital outputs: 3.
Short-circuit protection.
Width: 45 mm.
Height: 130 mm.
Depth: 65 mm.
