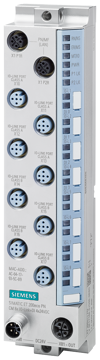

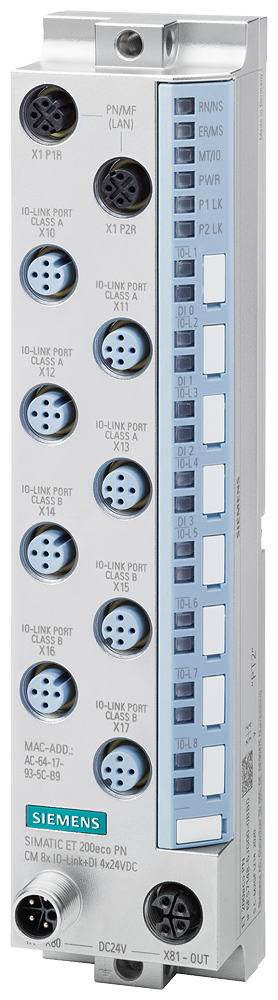

SIMATIC ET 200eco PN CM 8xIO-Link, M12-L 8x M12

Specifications: Supply voltage, Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Against destruction; encoder power supply outputs applied with reversed polarity. Load voltage 2L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction. Input current: Current consumption (rated value): 70 mA; without load. From load voltage 1L+ (unswitched voltage): 12 A; Maximum value. From load voltage 2L+, max: 12 A; Maximum value. Encoder supply, number of outputs: 8. 24 V encoder supply: Short-circuit protection: per channel, electronic. Output current, max: 0.5 A; Per channel. Typical power loss: 5.5 W. Digital inputs: Number of digital inputs: 4. Source/sink input: P-reading. Input characteristic curve in accordance with IEC 61131, type 3. PROFINET interfaces: 1. Interface type: PROFINET with 100 Mbit/s full duplex (100BASE-TX). Interface types: M12 port: 2x M12, 4-pin, D-coded. Number of ports: 2. Integrated switch. Isolation tested with: 24 V DC circuits: 707 V DC (type test). Test voltage for interface, rms value [VRMS]: 1 500 V; According to IEEE 802.3. IP degree of protection: IP65/67/69K. Ambient temperature during operation: Minimum: -40 °C. Maximum: 60 °C. Connection method: Design of electrical connection: 4/5-pin M12 circular connectors. Design of electrical connection for the inputs and outputs: M12, 5-pin, A-coded. Design of electrical connection for supply voltage: M12, 4-pin, L-coded. Width: 45 mm. Height: 200 mm. Depth: 48 mm.
