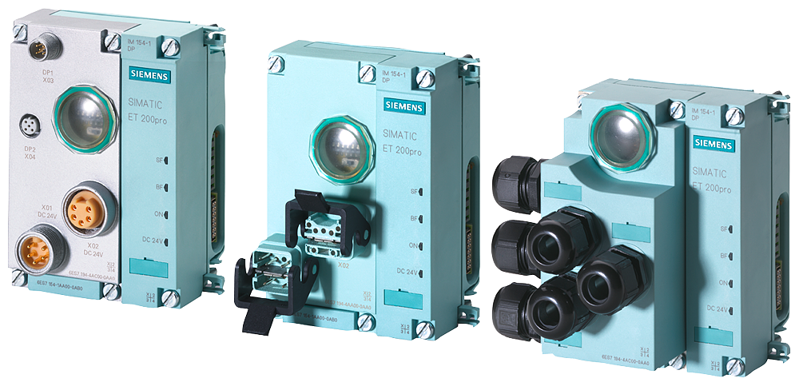

SIMATIC ET 200pro IM 154-1 DP
SKU: 6ES7154-1AA01-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, PROFIBUS DP Interface module (IM 154-1 DP) for ET 200 PRO, including connection and termination modules, can be ordered separately in 6ES7194-4A.00-0AA0.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Reverse polarity protection: against destruction.
Short-circuit protection: over exchangeable fuses.
Load voltage 2L+:
Rated value (DC): 24 V.
Reverse polarity protection: against destruction.
Input current from supply voltage 1L+, max: 200 mA.
Typical power loss: 5 W.
Interfaces/bus type: PROFIBUS DP.
Interface type RS 485:
Transmission rate, max: 12 Mbit/s.
Automatic detection of transmission rate.
Parameter:
DPV1 operation: possible.
Swapping interrupt: Parameterizable.
Startup if setpoint not equal to actual configuration: Parameterizable.
Hot swapping of modules: possible.
Isolation tested with 707 V DC (type test).
IP degree of protection: IP65/67.
Ambient temperature during operation:
Minimum: -25 °C.
Maximum: 55 °C.
Ambient temperature during storage/transportation:
Minimum: -40 °C.
Maximum: 70 °C.
Width: 90 mm.
Height: 130 mm.
Depth: 60 mm.
