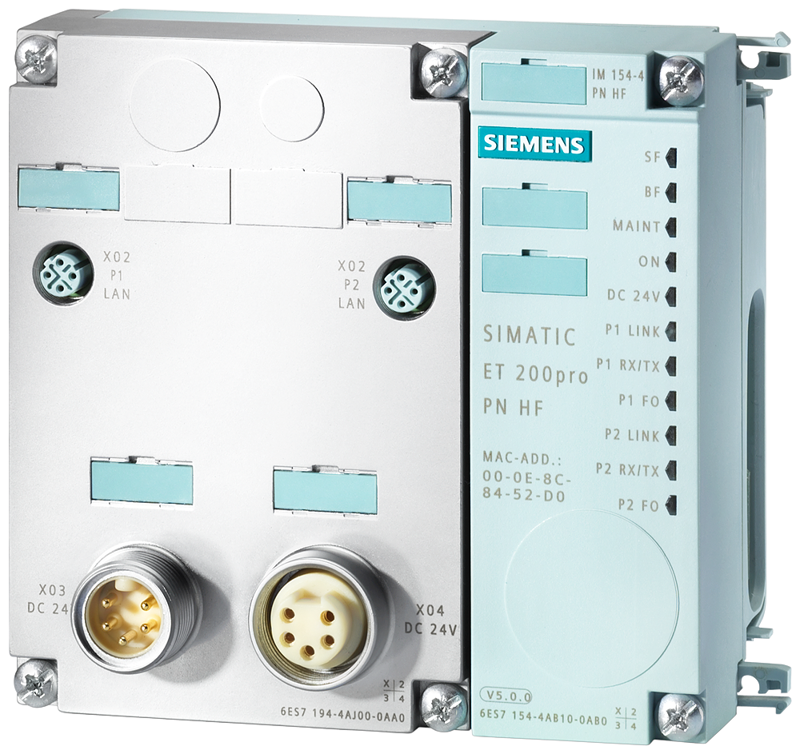

SIMATIC ET 200pro IM 154-4 PN HF

Specifications: Supply voltage: Rated value (DC): 24 V. Reverse polarity protection: against destruction. Short-circuit protection: Fuse in lower part is exchangeable, the fuse on the IM-LP is not. Load voltage 2L+: Rated value (DC): 24 V. Reverse polarity protection: against destruction. Input current from supply voltage 1L+, max: 400 mA; Dependent on terminal module, typ. maximum value for FO connection method, full load on RWB and 20.4 V input voltage. Typical power loss: 6 W; dependent on terminal module, typ. maximum value for CU connection method, full load on RWB, for FO the value is approx. 0.7 W higher. Interfaces/bus type: PROFINET IO. Interface type M12 port: Auto negotiation. Transmission rate, max: 100 Mbit/s. Parameter: Swapping interrupt: Parameterizable. Startup if setpoint not equal to actual configuration: Parameterizable. Hot swapping of modules: possible. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -25 °C. Maximum: 55 °C. Ambient temperature during storage/transportation: Minimum: -40 °C. Maximum: 70 °C. Width: 135 mm. Height: 130 mm. Depth: 60 mm.
