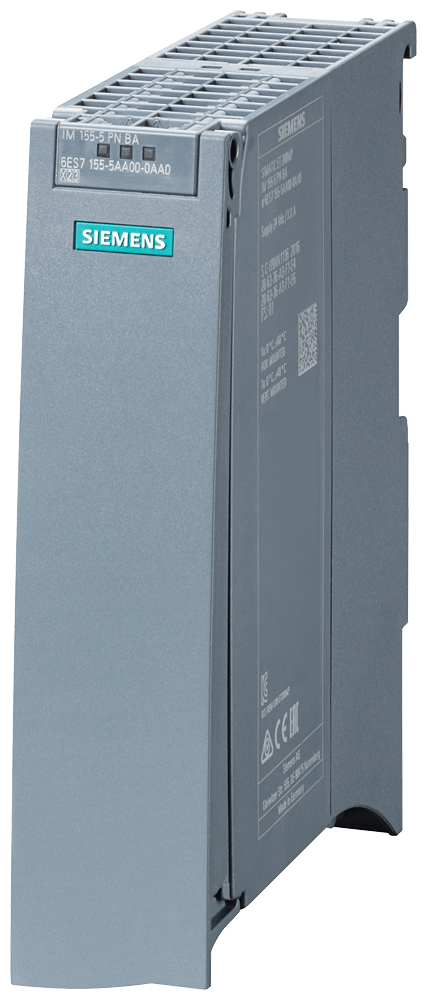

SIMATIC ET 200MP IM 155-5 PN BA For up to 12 I/O modules
SKU: 6ES7155-5AA00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200MP PROFINET IO device interface module (IM 155-5 PN BA) for ET 200MP electrical modules.
up to 12 IO modules.
Integrated two-port switch.
RJ45 Shared Device with Two IO Controllers.
MRP; firmware upgrade; I&M0.3.
General information:
Product type designation: IM 155-5 PN BA.
HW functional status: From FS02.
Firmware version: V4.3.0.
FW update possible: Yes.
Vendor identification (VendorID): 0x002A.
Device identifier (DeviceID): 0X0312.
Product function:
I&M data: Yes; I&M0 to I&M3.
Module swapping during operation (hot swapping): No.
Isochronous mode: No.
Tool changer: No.
Local coupling, IO data: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V15.1.
STEP 7 configurable/integrated from version: use GSD file.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Configuration control:
via dataset: No.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Short-circuit protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Input current:
Current consumption (rated value): 1 A; at 24 V DC and without load.
Current consumption, max.: 1.7 A.
Inrush current, max.: 2.8 A.
I²t: 0.04 A²·s.
Power:
Infeed power to the backplane bus: 14 W.
Power loss:
Power loss, typ.: 3 W.
Address area:
Address space per module:
Address space per module, max.: 64 byte; For input and output data respectively.
Address space per station:
Address space per station, max.: 64 byte; For input and output data respectively.
Hardware configuration:
Integrated power supply: Yes; 14 W.
System power supply can be plugged in to left of IM: No.
Number of permissible power segments: 1; incl. interface module.
Rack:
Modules per rack, max.: 12; I/O modules.
Submodules:
Number of submodules per station, max.: 108; 9 per I/O module.
Interfaces:
Number of PROFINET interfaces: 1; 2 ports (switch).
Interface:
Interface types:
RJ 45 (Ethernet): Yes.
Number of ports: 2.
integrated switch: Yes.
BusAdapter (PROFINET): No.
Protocols:
PROFINET IO Device: Yes.
Open IE communication: Yes.
Media redundancy: Yes; PROFINET MRP client.
PROFINET IO Device:
Services:
IRT: No.
PROFIenergy: No.
Prioritized startup: No.
Shared device: Yes.
Number of IO Controllers with shared device, max.: 2.
Interface types:
RJ 45 (Ethernet):
Transmission procedure: PROFINET with 100 Mbit/s full duplex (100BASE-TX).
100 Mbps: Yes.
Auto negotiation: Yes.
Auto crossing: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Protocols:
Modbus TCP: No.
Redundancy mode:
PROFINET system redundancy (S2): No.
on S7-1500R/H: No.
on S7-400H: No.
PROFINET system redundancy (R1): No.
H-Sync forwarding: No.
Media redundancy:
MRP: Yes.
MRPD: No.
Open IE communication:
TCP/IP: Yes.
SNMP: Yes.
LLDP: Yes.
Isochronous mode:
Equidistance: No.
Interrupts/diagnostics/status information:
Status indicator: Yes.
Alarms: Yes.
Diagnostics function: Yes.
Diagnostics indication LED:
RUN LED: Yes; green LED.
ERROR LED: Yes; red LED.
MAINT LED: Yes; Yellow LED.
Connection display LINK TX/RX: Yes; 2x green-yellow LEDs.
Potential separation:
between backplane bus and electronics: No.
between PROFINET and all other circuits: Yes; 1500 V AC (type test).
between supply and all other circuits: No.
Permissible potential difference:
between different circuits: Safety extra low voltage SELV.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Network loading class: 2.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C; From FS03.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C; From FS03.
vertical installation, max.: 40 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Weights:
Weight, approx.: 236 g.
