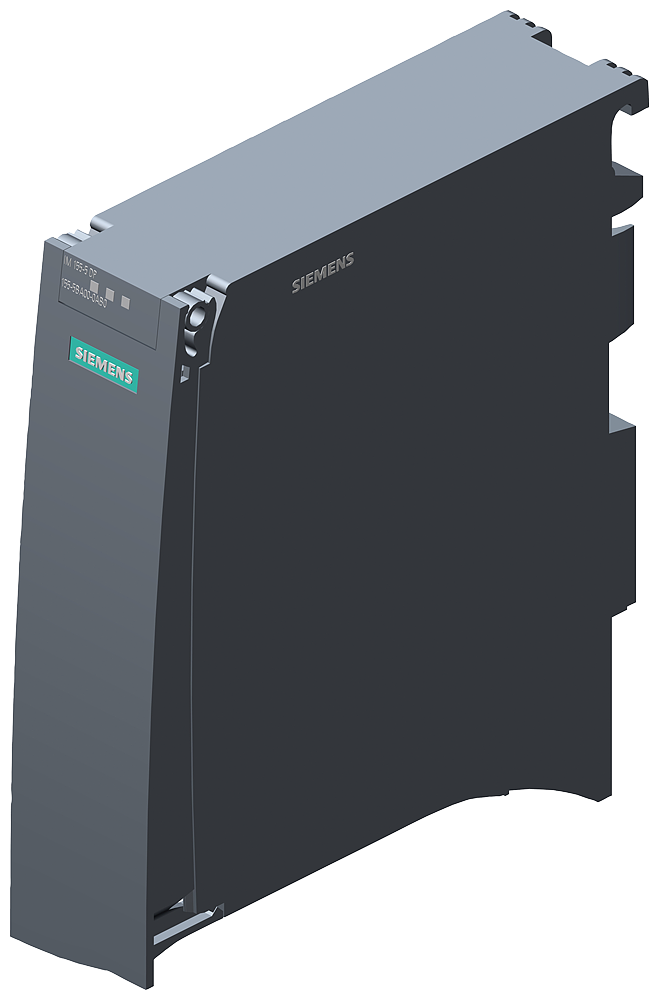

SIMATIC ET 200MP. PROFIBUS connection IM 155-5 DP ST
SKU: 6ES7155-5BA00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200MP with PROFIBUS connection IM 155-5 DP ST supports up to 12 S7-1500 modules and includes a plug (6ES7972-0BB70-0XA0).
General information:
Product type designation: IM 155-5 DP ST.
HW functional status: From FS01.
Firmware version: V2.0.0.
FW update possible: Yes.
Vendor identification (VendorID): 81Aah.
Product function:
I&M data: Yes; I&M0 to I&M3.
Module swapping during operation (hot swapping): No.
Isochronous mode: No.
Tool changer: No.
Local coupling, IO data: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13.
STEP 7 configurable/integrated from version: use GSD file.
PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
Configuration control:
via dataset: No.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Short-circuit protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Input current:
Current consumption (rated value): 0.2 A; at 24 V DC and without load.
Current consumption, max.: 1.2 A; at 20.4 V DC and max. load.
Inrush current, max.: 4 A.
I²t: 0.09 A²·s.
from interface 5 V DC, max.: 80 mA.
Power:
Infeed power to the backplane bus: 14 W.
Power loss:
Power loss, typ.: 4 W.
Address area:
Address space per module:
Address space per module, max.: 64 bytes; For input and output data respectively.
Address space per station:
Address space per station, max.: 244 bytes; For input and output data respectively.
Buy currently uses Select Automation shop pricing and checkout.
Hardware configuration:
Integrated power supply: Yes; 14 W.
System power supply can be plugged in to left of IM: No.
Number of permissible power segments: 1; incl. interface module.
Rack:
Modules per rack, max.: 12; I/O modules.
Interfaces:
Number of PROFIBUS interfaces: 1; 1 port.
Interface:
Interface types:
RS 485: Yes.
Number of ports: 1.
integrated switch: No.
BusAdapter (PROFINET): No.
Protocols:
PROFIBUS DP device: Yes.
Interface types:
RS 485:
Transmission rate, max.: 12 Mbit/s.
Protocols:
Modbus TCP: No.
PROFIBUS DP:
Services:
SYNC capability: Yes.
FREEZE capability: Yes.
DPV1: Yes.
Interrupts/diagnostics/status information:
Status indicator: Yes.
Alarms: Yes.
Diagnostics function: Yes.
Diagnostics indication LED:
RUN LED: Yes; green LED.
ERROR LED: Yes; red LED.
MAINT LED: Yes; Yellow LED.
Connection display DP: Yes; green LED.
Potential separation:
between backplane bus and electronics: No.
between PROFIBUS DP and all other circuit components: Yes.
between supply and all other circuits: No.
Permissible potential difference:
between different circuits: Safety extra low voltage SELV.
Isolation:
Isolation tested with: 707 V DC (type test).
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -25 °C; from FS04.
horizontal installation, max.: 60 °C.
vertical installation, min.: -25 °C; from FS04.
vertical installation, max.: 40 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
connection method:
ET-Connection:
via BU/BA Send: No.
Dimensions:
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Weights:
Weight, approx.: 360 g.
