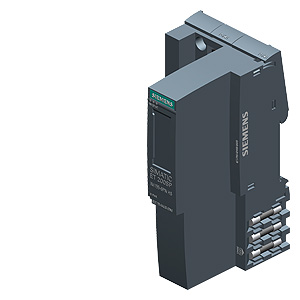

SIMATIC ET 200SP IM 155-6 PN HS With server module
SKU: 6ES7155-6AU00-0DN0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, PROFINET interface module IM155-6PN High Speed, maximum of 30 I/O modules.
0.125 ms isochronous mode. Multi-hotswap, including server module.
General information:
Product type designation: IM 155-6 PN HS.
HW functional status: From FS02.
Firmware version: V4.0
FW update possible: Yes.
Product function:
I&M data: Yes; I&M0 to I&M3.
Module swapping during operation (hot swapping): Yes; Multi-hot swapping.
Isochronous mode: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: V5.5 SP4.
PROFINET from GSD version/GSD revision: GSDML V2.32.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Short-circuit protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Input current:
Current consumption, max.: 500 mA.
Inrush current, max.: 4.5 A.
I²t: 0.09 A²·s.
Power loss:
Power loss, typ.: 1.7 W.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -25 °C; No condensation.
horizontal installation, max.: 60 °C.
vertical installation, min.: -25 °C; No condensation.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 50 mm.
Height: 117 mm.
Depth: 74 mm.
Weights:
Weight, approx.: 147 g; without BusAdapter.
