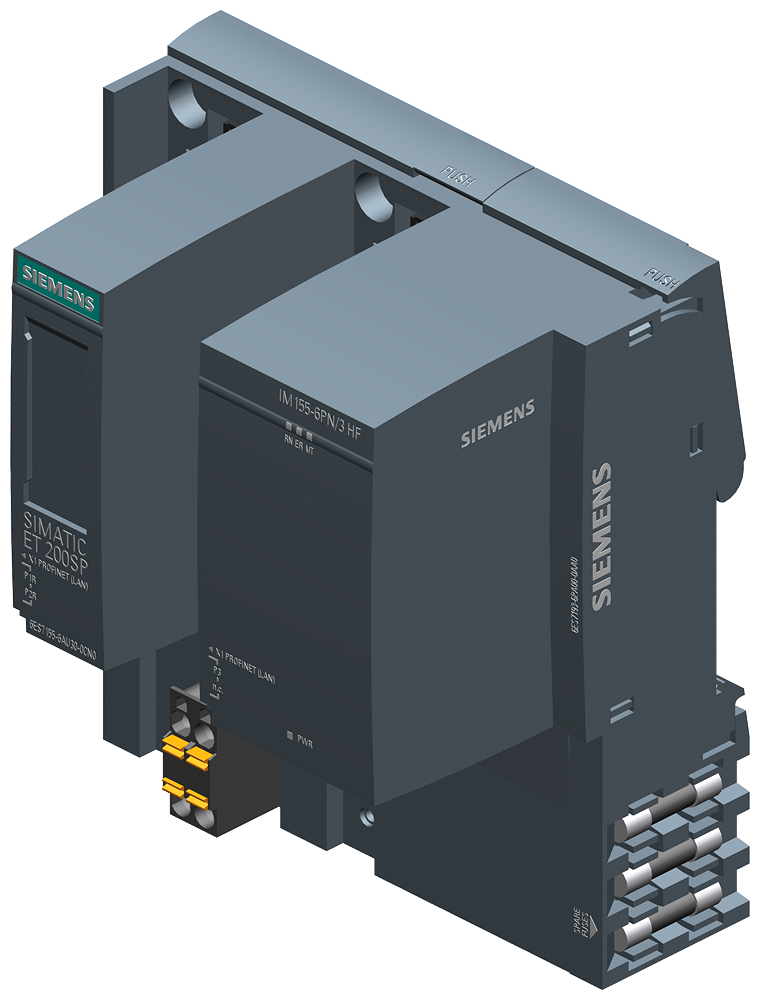

SIMATIC ET 200SP IM 155-6 PN/3 HF With server module
SKU: 6ES7155-6AU30-0CN0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP; PROFINET.
Three-port interface module.
IM 155-6PN/3 High Feature.
There are two slots for bus adapters.
Maximum of 64 I/O modules and 16 ET 200AL modules.
S2 redundancy, multiple hotswaps, 0.25 ms, isochronous mode.
Optional PN strain relief, including a server module.
General information:
Product type designation: IM 155-6 PN/3 HF.
HW functional status: From FS02.
Firmware version: V4.2
FW update possible: Yes.
Product function:
I&M data: Yes; I&M0 to I&M3.
Module swapping during operation (hot swapping): Yes; Multi-hot swapping.
Isochronous mode: Yes.
Tool changer: Yes; Docking station and docking unit.
Local coupling, IO data: Yes.
Number of coupling modules: 16.
Number of coupling submodules per module: 4.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V15.1.
STEP 7 configurable/integrated from version: V15.1.
PROFINET from GSD version/GSD revision: GSDML V2.34.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Short-circuit protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 10 ms.
Input current:
Current consumption (rated value): 175 mA; At 24 V, 2 slots 2x RJ45 BusAdapter, no I/O modules.
Current consumption, max.: 950 mA.
Inrush current, max.: 9 A.
I²t: 0.34 A²·s.
Power loss:
Power loss, typ.: 4.9 W.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C; No condensation.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C; No condensation.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 100 mm.
Height: 117 mm.
Depth: 74 mm.
Weights:
Weight, approx.: 220 g; without BusAdapter.
