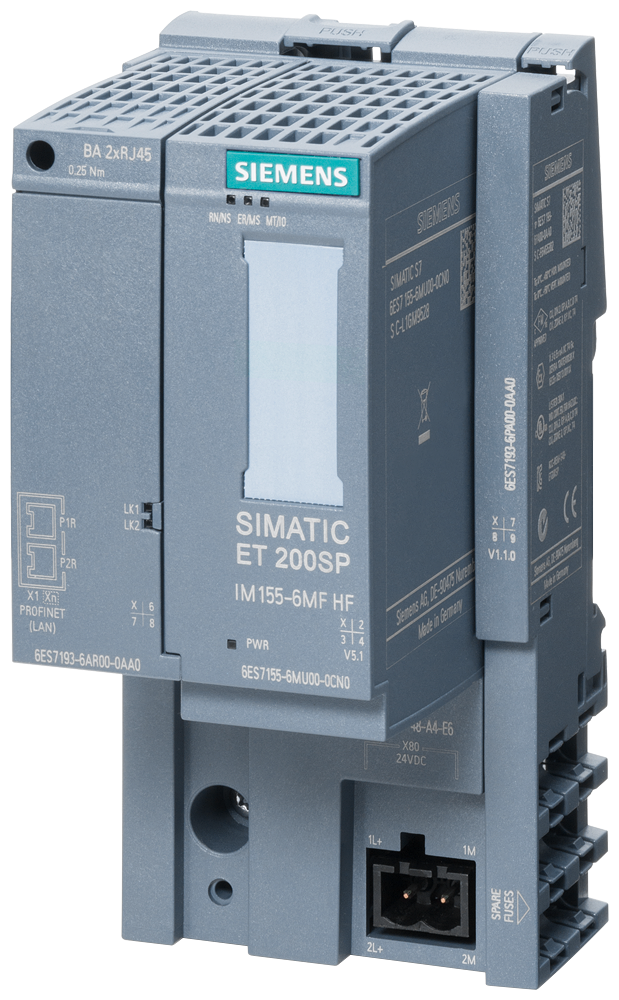

      SIMATIC ET 200SP IM 155-6 MF HF With server module

      SKU: 6ES7155-6MU00-0CN0

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: SIMATIC ET 200SP: MultiFieldbus. 2-port interface module, IM 155-6MF High Feature, including PN IO, Ethernet IP, and Modbus TCP. There is one BusAdapter slot, which can accommodate up to 64 I/O modules and 16 ET 200AL modules. multi-hot swap, optional cable grip, and server module. General information: Product type designation: IM 155-6 MF HF. Firmware version: V5.2 FW update possible: Yes. Vendor identification (VendorID): 002AH. Device identifier (DeviceID): 0313H. Manufacturer ID according to ODVA (VendorID): 04E3H. Device ID according to ODVA (Product code): 0FA2H. Product function: I&M data: Yes; I&M0 to I&M3. Module swapping during operation (hot swapping): Yes; Multi-hot swapping. Isochronous mode: No. Tool changer: Yes; Docking station and docking unit. Local coupling, IO data: Yes. Number of coupling modules: 6; 1x output + max. 5x input. Engineering with: STEP 7 TIA Portal configurable/integrated from version: via IM155-6PN/2 HF in compatibility mode. STEP 7 configurable/integrated from version: via IM155-6PN/2 HF in compatibility mode. PROFINET from GSD version/GSD revision: GSDML V2.3. Multi Fieldbus Configuration Tool (MFCT): from V1.3.
      6ES7155-6MU00-0CN0
      Alternative image 1
      Supply voltage: Rated value (DC): 24 V. permissible range, lower limit (DC): 19.2 V. permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Yes. Short-circuit protection: Yes. Mains buffering: Mains/voltage failure stored energy time: 10 ms; according to IEC 61131-2 (6.2.1.3) severity degree PS2. Input current: Current consumption, max.: 700 mA. Inrush current, max.: 4.5 A. I²t: 0.25 A²·s. Power loss: Power loss, typ.: 2.4 W. Ambient conditions: Ambient temperature during operation: horizontal installation, min.: -30 °C; No condensation. horizontal installation, max.: 60 °C. vertical installation, min.: -30 °C; No condensation. vertical installation, max.: 50 °C. Altitude during operation relating to sea level: Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual. Dimensions: Width: 50 mm. Height: 117 mm. Depth: 74 mm. Weights: Weight, approx.: 120 g; without BusAdapter.
