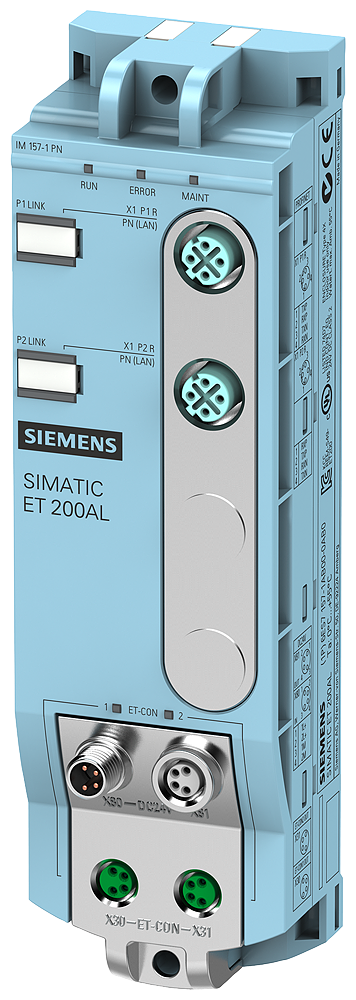

SIMATIC ET 200AL IM 157-1 PN

Specifications: Supply voltage for Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction. Input current: Current consumption (rated value): 100 mA. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Typical power loss: 2.9 W. PROFINET interfaces: 1. Interface types: M12 port: 2x M12 D-coded. Integrated switch. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -25 °C. Maximum: 55 °C. Connection method: Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 45 mm. Height: 159 mm. Depth: 40 mm.
