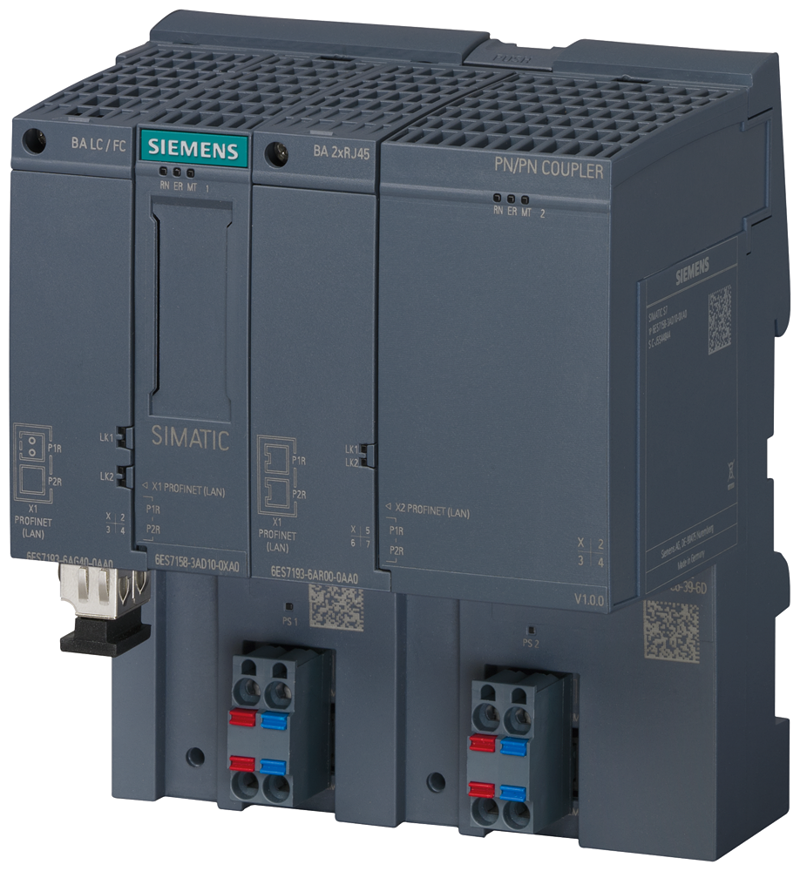

SIMATIC DP PN/PN coupler
SKU: 6ES7158-3AD10-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC PN/PN Coupler provides deterministic data exchange between up to four PN Controllers per subnet, as well as between subnets, PROFISafe data exchange, I/O-, MSI-, MSO-, and data record communication, redundant power supply, PN connection via SIMATIC Bus Adapter (BA), and delivery without Bus Adapter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Mounting: Mounting rail 7.5 mm and 15 mm.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max.: 360 mA; For 19.2 V input voltage at the right-hand supply terminal, including 2 plugged BA 2x LC.
Inrush current, max.: 1.6 A.
I²t: 0.031 A²·s.
From supply voltage 1L+, max.: 320 mA; For 19.2 V input voltage at the left-hand supply terminal, including 2 plugged BA 2x LC.
Typical power loss: 4 W; For 24 V input voltage and 2 plugged BA 2x RJ45 If Bus Adapters with an optical interface are plugged, there is an additional 750 m W per optical interface (3 W with 2 plugged BA 2x LC).
Interfaces:
Number of PROFINET interfaces: 2; One PROFINET interface per line side.
Optical interface: Yes; Via SIMATIC Bus Adapter.
Transmission rate, max: 100 Mbit/s.
Interface types:
Number of ports: 2; via Bus Adapter.
Integrated switch.
Compatible bus adapter (PROFINET): BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ / RJ45, BA SCRJ / FC, BA 2x LC, BA LC / RJ45, BA LC / FC.
Interface types:
Number of ports: 2; via Bus Adapter.
Integrated switch.
Compatible bus adapter (PROFINET): BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ / RJ45, BA SCRJ / FC, BA 2x LC, BA LC / RJ45, BA LC / FC.
RJ 45 (Ethernet):
Transmission procedure: PROFINET with 100 Mbit/s full duplex (100BASE-TX).
100 Mbps: PROFINET with 100 Mbit/s full duplex (100BASE-TX).
Auto negotiation.
Auto crossing.
Ambient temperature during operation:
Minimum: -30 °C; From FS05.
Maximum: 60 °C; = T max for horizontal installation; for vertical installation T max = 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2 000 m, see section "Climatic and mechanical environmental conditions".
Strain relief: Optional, for RJ45 and FC Bus Adapter only.
Width: 100 mm; Minimized with good handling.
Height: 117 mm.
Depth: 74 mm; with mounting rail.
