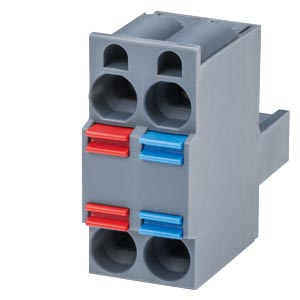

Siemens S7-1500 Power supply connector
SKU: 6ES7193-4JB00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
plug, female, 2x2-pole, ET200SP, interface module, KP32F, PN-PN coupler, grid size 5.08 mm cage clamp technology, internally bridged, color-coded; scope of supply: 10 plugs
Buy currently uses Select Automation shop pricing and checkout.
General information:
Product type designation: Connector, female, 2x2-pin.
Installation type/mounting:
Wall mounting/direct mounting: Yes; can be plugged into SIMATIC HMI device.
Supply voltage:
Type of supply voltage: DC.
Rated value (DC): 24 V.
Interfaces:
HMI-side interface.
Number of pins HMI-side: 2; Outgoing side jumpered internally, color-coded.
Device-side interface.
Number of pins device-side: 4; Female, spring-loaded terminals 0.75 mm².
Standards, approvals, certificates:
CE mark: Yes.
RoHS conformity: Yes.
China RoHS compliance: Yes.
Ambient conditions:
Ambient temperature during storage/transportation.
min.: -20 °C.
max.: 70 °C.
Mechanics/material:
Design of housing: plastic.
Dimensions:
Width: 10 mm.
Height: 22 mm.
Thickness: 25 mm.
