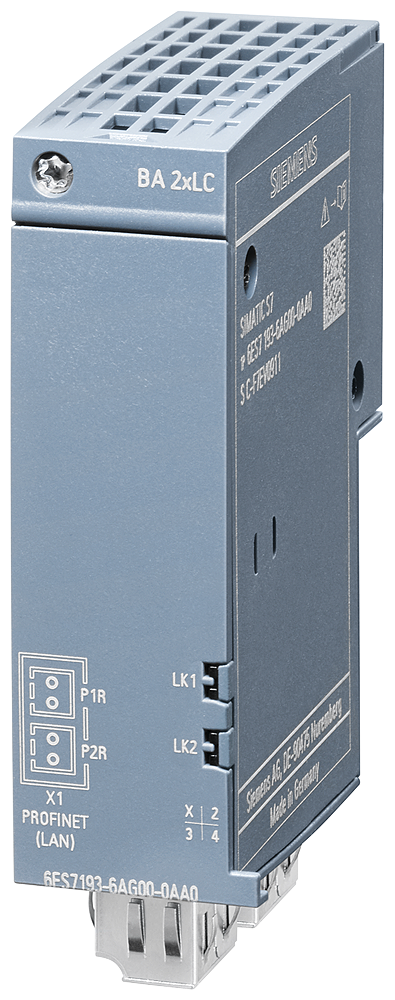

SIMATIC ET 200SP BA 2xLC
SKU: 6ES7193-6AG00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC bus adapter BA 2xLC with 2x LC glass FOC connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
HW functional status: from FS04.
Interfaces: 1; 2 ports (switch) LC Multimode Glass Fibre.
Supports protocol for PROFINET IO: LC ports, 2; Wavelength of 1 270 - 1 380 nm, corresponds to 100BASE-FX.
Cable length:
Multimode graded-index fibber 50/125 µm: 3 km; min. transmits power -23.5 dB, min. receiver sensitivity -31 Db.
Multimode graded-index fibber 62.5/125 µm: 3 km; min. transmits power -20 dB, min. receiver sensitivity -31 dB.
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 69.5 mm.
Depth: 59 mm.
