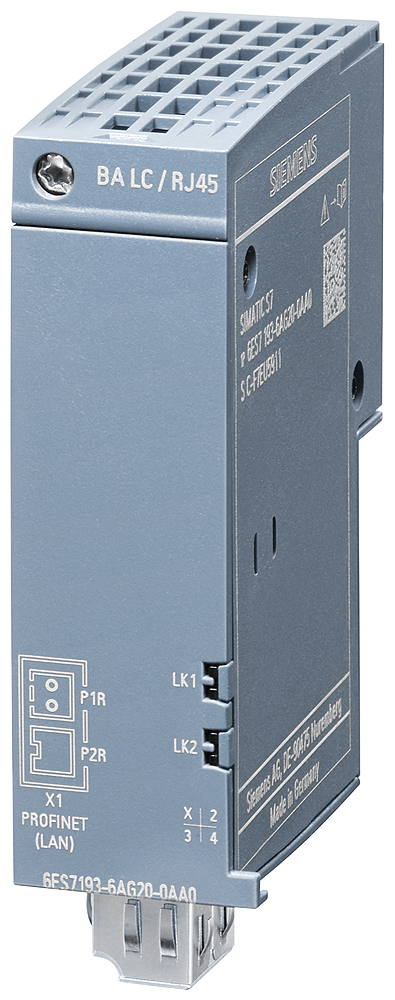

SIMATIC ET 200SP BA LC/RJ45
SKU: 6ES7193-6AG20-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC bus adapter: BA LC/RJ45; media converter glass FOC/CU.
One LC FO connection and one RJ45 connector.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
HW functional status: from FS04.
PROFINET interfaces: 1; 2 ports (switch) LC / RJ45.
Supports protocol for PROFINET IO:
RJ45 ports: 1.
LC ports: 1; Wavelength of 1 270 - 1 380 nm, corresponds to 100BASE-FX.
Cable length:
Cu conductors: 100 m.
Multimode graded-index fibber 50/125 µm: 3 km.
Multimode graded-index fibber 62.5/125 µm: 3 km
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 69.5 mm.
Depth: 59 mm.
