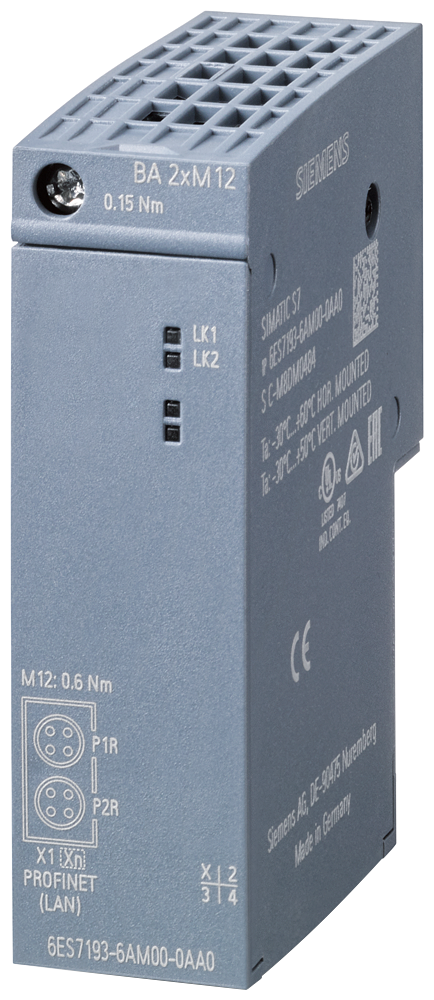

SIMATIC ET 200SP BA 2x M12 BusAdapter
SKU: 6ES7193-6AM00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC Bus Adapter BA 2xM12 features two M12 push-pull sockets with D-coding and is also compatible with normal M12.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
PROFINET interfaces: 1.
Supports protocol for PROFINET IO: 2 M12 ports.
Cable length (Cu conductors): 100 m.
Ambient temperature during operation:
Horizontal installation, min: -30 °C; No condensation.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; No condensation.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 73.5 mm.
Depth: 59 mm.
