SIMATIC ET 200SP BA SCRJ/FC
SKU: 6ES7193-6AP40-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

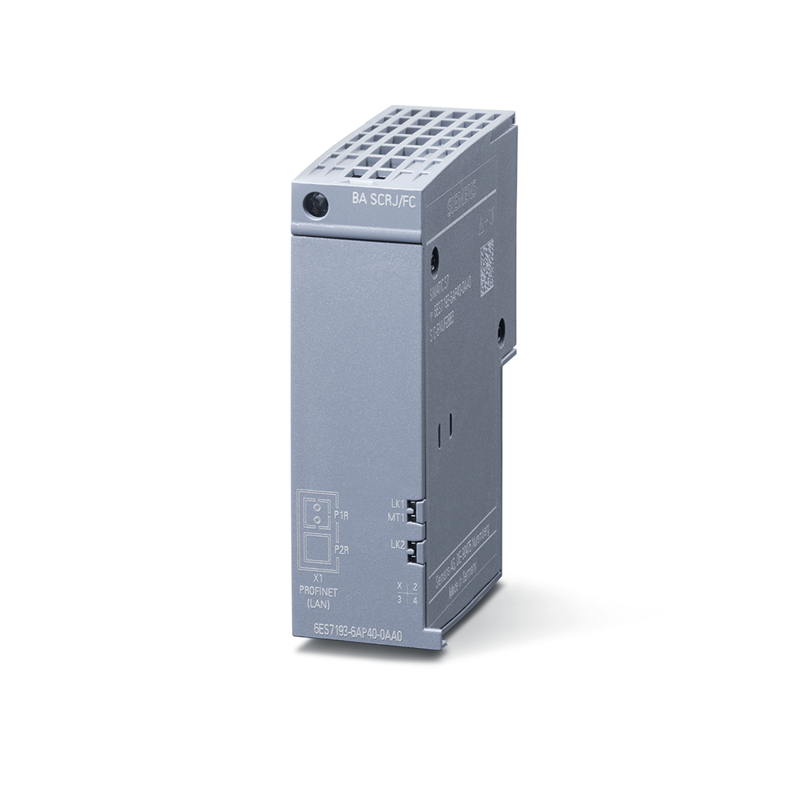

SIMATIC ET 200SP, Bus Adapter: BA SCRJ/FC, Media Converter: FOC-CU.
One Fast Connect (FC) connection and one SCRJ FO connection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
HW functional status: from FS04.
PROFINET interfaces: 1; 2 ports (switch) SCRJ/FC.
Supports protocol for PROFINET IO:
FC (Fast Connect) connections: 1.
SCRJ ports: 1.
Cable length:
PCF: 100 m.
Plastic FOC (POF): 50 m.
Cu conductors: 100 m.
Ambient temperature during operation:
Horizontal installation, min: -25 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -25 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 69.5 mm.
Depth: 59 mm.
