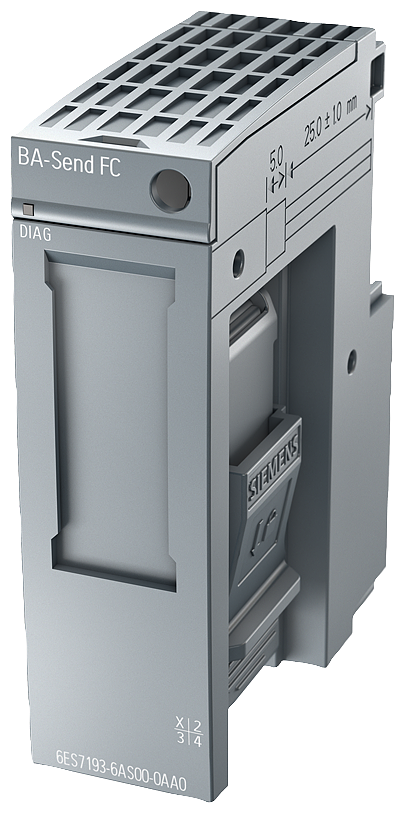

SIMATIC ET 200SP BA-Send 1xFC
SKU: 6ES7193-6AS00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP with Bus Adapter BA-SEND BA1XFC and 1x Fast Connect connection for ET.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
HW functional status: From FS05.
Cable length (Cu conductors): 15 m; from IM firmware V3.3: between BA-send and the first ET-CONNECTION bus node and between all other bus nodes.
ET-Connection: 1.
FC (Fast Connect).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 69.5 mm.
Depth: 59 mm.
