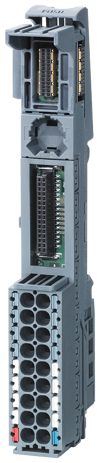

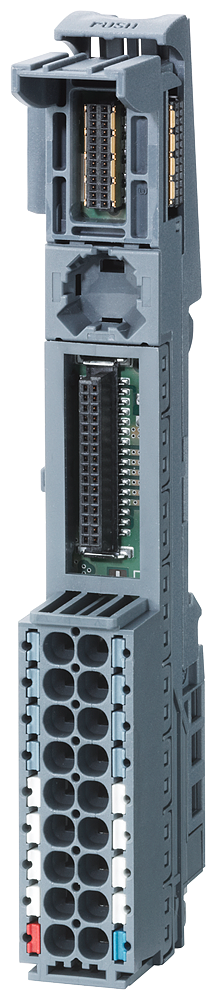

SIMATIC ET 200SP BU type A0 BU15-P16+A0+2B
SKU: 6ES7193-6BP00-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP with Base Unit BU15-P16+A0+2B.
BU type is A0.
Push-in terminals.
There are no AUX terminals.
Bridged to the left.
WxH: 15x117 mm.
General information:
Product type designation: BU type A0.
HW functional status: From FS06.
Supply voltage:
Rated value (DC): 24 V.
external protection for power supply lines: Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
Mains filter:
Integrated: No.
Current carrying capacity:
For P1 and P2 bus, max.: 10 A.
For process terminals, max.: 2 A.
Hardware configuration:
Automatic encoding: Yes.
Formation of potential groups:
New potential group: No.
Potential group continued from the left: Yes.
Slots:
Number of slots: 1; Type A0.
Buy currently uses Select Automation shop pricing and checkout.
Isolation:
Isolation tested with: 707 V DC (type test).
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Accessories:
Colour coding labels:
for process terminals: CC00 to CC09.
for AUX terminals: does not exist.
for add-on terminals: does not exist.
connection method:
Terminals:
Terminal type: Push-in terminal.
system-integrated shield connection: Yes; Optional.
Conductor cross-section, min.: 0.14 mm²; AWG 26.
Conductor cross-section, max.: 2.5 mm²; AWG 14.
Number of process terminals to I/O module: 16; Pro slot.
Number of terminals to AUX bus: 0.
Number of add-on terminals: 0.
Number of terminals with connection to P1 and P2 bus: 2; Pro slot.
Dimensions:
Width: 15 mm.
Height: 117 mm.
Depth: 35 mm.
Weights:
Weight, approx.: 40 g.
