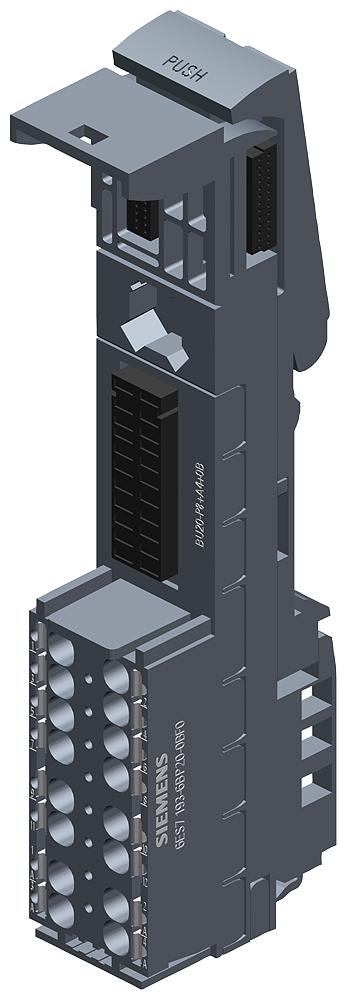

SIMATIC ET 200SP BU type F0 BU20-P8+A4+0B PU 1
SKU: 6ES7193-6BP20-0BF0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Base unit BU20-P8+A4+0B, BU type F0, SIMATIC ET 200SP, push-in terminals with four AUX terminals, bridged to the left, dimensions W x H: 20 mm x 117 mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: up to 230 V AC/DC (AC only one phase).
Current carrying capacity:
Up to 60 °C, max: 10 A
For P1 and P2 bus, max: 10 A.
For AUX bus, max: 10 A.
For process terminals, max: 5 A.
Number of slots: 1; Type F0.
Isolation tested with 3 100 V DC.
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Terminals (connection method):
System-integrated shield connection: Optional.
Width: 20 mm.
Height: 117 mm.
Depth: 35 mm.
