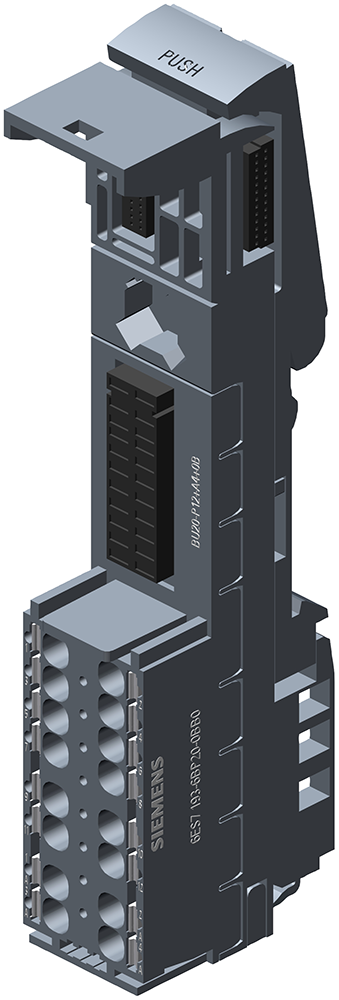

SIMATIC ET 200SP BU type B0 BU20-P12+A4+0B PU 10
SKU: 6ES7193-6BP20-2BB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, base unit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, push-in terminals with 4 AUX terminals bridged to the left, dimensions: 20 mm x 117 mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage Rated value (DC):
For P1 and P2 bus: 24 V.
For AUX bus: 24 V; Equal potential group to P1/P2 bus or PE.
For process terminals: 24 V.
Rated value (AC):
For P1 and P2 bus: 230 V.
For AUX bus: 230 V; Equal potential group to P1/P2 bus or P.
For process terminals: 230 V.
Current carrying capacity:
up to 60 °C, max.: 10 A.
For P1 and P2 bus, max: 10 A.
For AUX bus, max: 10 A.
For process terminals, max: 5 A.
Number of slots: 1.
Isolation tested with 3 100 V DC.
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Terminals (connection method):
Terminal type: Push-in terminal.
System-integrated shield connection: Optional.
Conductor cross-section, min: 0.14 mm²; AWG 26.
Conductor cross-section, max: 2.5 mm²; AWG 14.
Number of process terminals to I/O module: 12; Pro slot.
Number of terminals to AUX bus: 0.
Number of add-on terminals: 0.
Number of terminals with connection to P1 and P2 bus: 0; Pro slot.
Width: 20 mm.
Height: 117 mm.
Depth: 35 mm.
