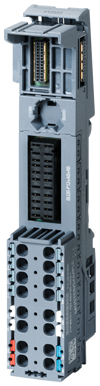

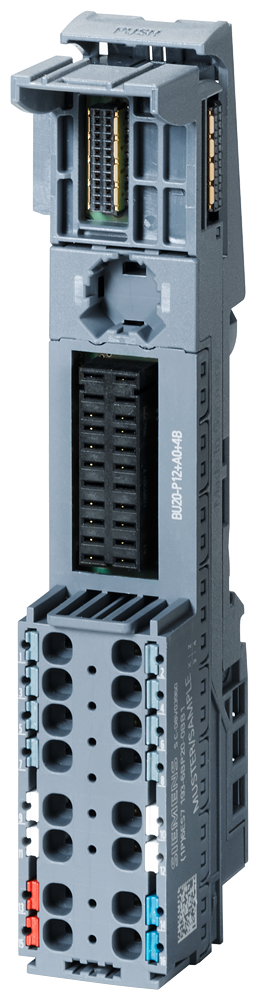

SIMATIC ET 200SP BU type B1 BU20-P12+A0+4B PU 10
SKU: 6ES7193-6BP20-2BB1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Base Unit: BU20-P12+A0+4B.
BU Type: B1.
Packaging unit: ten pieces.
Push-in terminals.
Without AUX-terminals.
Bridges to the left BU.
Dimensions: 20mm x 117mm.
General information:
Product type designation: BU type B1.
HW functional status: FS10 and higher.
Supply voltage:
Rated value (DC): See manual.
For P1 and P2 bus: 24 V.
For AUX bus: 24 V; Equal potential group to P1/P2 bus or PE.
for process terminals: 24 V.
Rated value (AC): See manual.
For P1 and P2 bus: 230 V.
For AUX bus: 230 V; Equal potential group to P1/P2 bus or PE.
for process terminals: 230 V.
external protection for power supply lines: Yes.
Mains filter:
Integrated: No.
Current carrying capacity:
up to 60 °C, max.: 10 A.
For P1 and P2 bus, max.: 10 A.
For AUX bus, max.: 10 A.
For process terminals, max.: 5 A.
Hardware configuration:
Automatic encoding: Yes.
Slots:
Number of slots: 1.
Buy currently uses Select Automation shop pricing and checkout.
Potential separation:
between backplane bus and supply voltage: Yes.
between process terminals and supply voltage: Yes; Not applicable for process terminals 9 to 12.
between power bus and supply voltage: Yes.
Isolation:
Isolation tested with: 3 100 V DC.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Accessories:
Colour coding labels:
for AUX terminals: CC84 to CC86.
connection method:
Terminals:
Terminal type: Push-in terminal.
system-integrated shield connection: No.
Conductor cross-section, min.: 0.14 mm²; AWG 26.
Conductor cross-section, max.: 2.5 mm²; AWG 14.
Number of process terminals to I/O module: 12; Pro slot.
Number of terminals to AUX bus: 0.
Number of add-on terminals: 0.
Number of terminals with connection to P1 and P2 bus: 0; Pro slot.
Dimensions:
Width: 20 mm.
Height: 117 mm.
Depth: 35 mm.
Weights:
Weight, approx.: 48 g.
