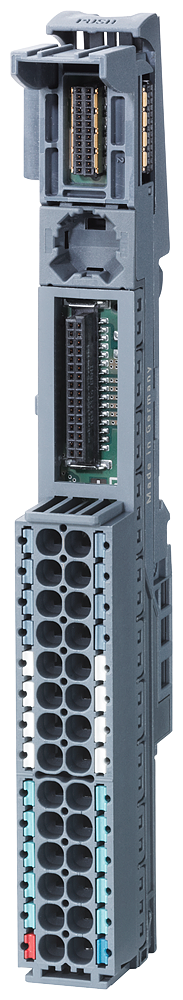

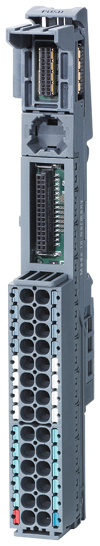

SIMATIC ET 200SP BU type A1 BU15-P16+A0+12B/T
SKU: 6ES7193-6BP40-0BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC ET 200SP Base Unit BU15-P16+A0+12B/T, BU type A1, push-in terminals with two additional add-on terminals are positioned to the left and have dimensions of 15 mm by 141 mm.
Additionally, temperature acquisition is included.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
External protection for power supply lines: 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
Current carrying capacity:
For P1 and P2 bus, max: 10 A.
For process terminals, max: 2 A.
Number of slots: 1; Type A1.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Terminals (connection method):
Terminal type: Push-in terminal.
System-integrated shield connection: Optional.
Conductor cross-section, min: 0.14 mm²; AWG 26.
Conductor cross-section, max: 2.5 mm²; AWG 14.
Number of process terminals to I/O module: 16.
Number of terminals to AUX bus: 0.
Number of add-on terminals: 2x5.
Number of terminals with connection to P1 and P2 bus: 2.
Width: 15 mm.
Height: 141 mm.
Depth: 35 mm.
