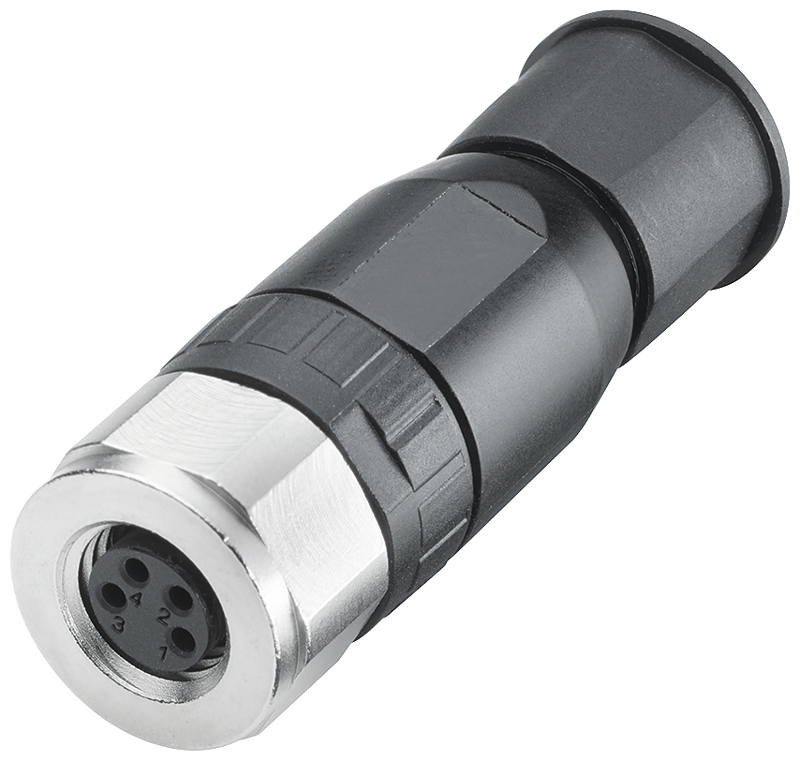

SIMATIC ET 200AL Power connector M8 socket

Description: M8 power connection, socket insert, 4-pole. General information: Product type designation: Power connector. Product description: M8 plug connector with high degree of protection, socket insert, 4-pin, plastic version. Suitability for use: For connection to ET 200AL for 24 V DC power supply. Degree and class of protection: IP degree of protection: IP65/67. Ambient conditions: Ambient temperature during assembly, min.: -30 °C. Ambient temperature during assembly, max.: 85 °C. Ambient temperature during storage/transportation: min.: -40 °C. max.: 85 °C. connection method: Connector type: M8, 4-pole. Type of electrical connection for mains supply line: Screw terminals. connectable cable cross-section for mains supply line, min.: 0.14 mm². connectable cable cross-section for mains supply line, max.: 0.5 mm². Connectable conductor cross-section for AWG cables, min.: 26. Connectable conductor cross-section for AWG cables, max.: 20. Suitable for cable diameter, min.: 4 mm. usable for cable diameter, max.: 5.5 mm. Mechanics/material: Outgoing feeder type: 180° cable outlet. Material of housing: plastic. Dimensions: Width: 14 mm. Depth: 47 mm.
