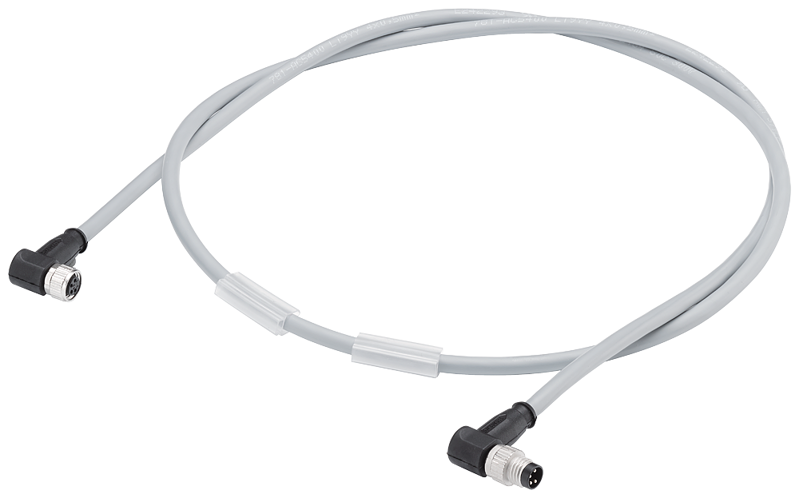

SIMATIC ET 200AL Power cable pre-assembled at both ends, angled, 0.3 m
SKU: 6ES7194-2LH03-1AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Power cable M8, both ends assembled with angled M8 connectors and sockets, 4-pole, length 0.3 m.
General information:
Product type designation: Power cable.
Product description: Flexible cable (4-core), preassembled at each end with a 4-pin M8 male / female connector, angled.
Suitability for use: For connection to ET 200AL for 24 V DC power supply.
Degree and class of protection:
IP degree of protection: IP65/67.
Ambient conditions:
Ambient temperature during assembly, min.: -30 °C.
Ambient temperature during assembly, max.: 80 °C.
Ambient temperature during storage/transportation:
min.: -40 °C.
max.: 80 °C.
Buy currently uses Select Automation shop pricing and checkout.
Cables:
Cable designation: 4 Li9Y 0.50 mm² Y.
Cable length: 0.3 m.
Number of electrical cores: 4.
Outer diameter of inner conductor: 0.8 mm.
Outer diameter of core insulation: 1.46 mm.
Outer diameter of cable sheath: 5.2 mm.
Number of bending cycles: 2 500 000; cable carrier compliant for 2.5 million bending cycles with a bending radius of 52 mm, a speed of 3 m/s and an acceleration of 10 m/s².
Permissible bending radius, single bend, min.: 26 mm.
Permissible bending radius, multiple bends, min.: 52 mm.
Bending radius for continuous bending: 52 mm.
Color of cable sheath: Grey.
Color of core insulation of data cores: white / brown / blue / black.
Weight per length: 44 kg/km.
Mechanics/material:
Outgoing feeder type: 90 degree cable outlet.
Material of cable sheath: PVC.
Material of core insulation: PP.
Material property:
Silicone-free: Yes.
