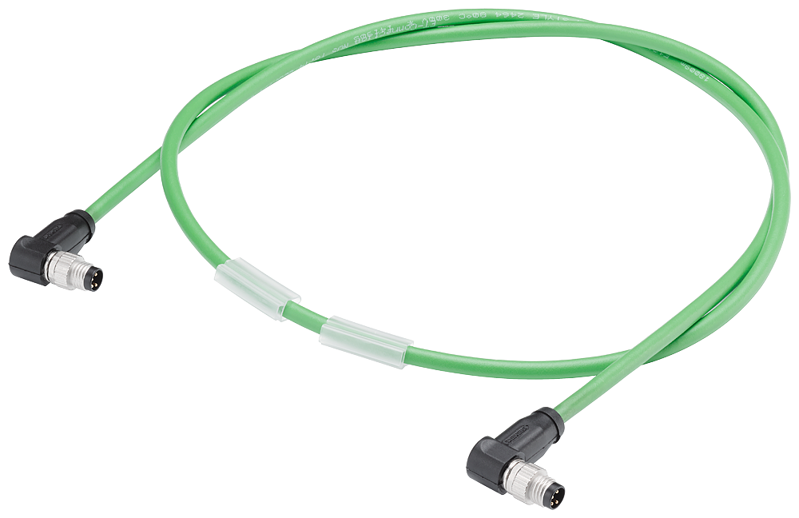

SIMATIC ET 200AL Bus cable pre-assembled at both ends, angled, 10 m
SKU: 6ES7194-2LN10-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Bus cable for ET connection M8, built on both ends with 2x angled M8 connectors, 4-pole, insulated, length 10 m.
General information:
Product type designation: Bus cable.
Product description: Flexible cable (4-core), preassembled at both ends with 2x M8 plugs, angled, 4 pin, shielded.
Suitability for use: for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67.
Degree and class of protection:
IP degree of protection: IP65/67.
Ambient conditions:
Ambient temperature during assembly, min.: -30 °C.
Ambient temperature during assembly, max.: 80 °C.
Ambient temperature during storage/transportation:
min.: -40 °C.
max.: 80 °C.
Buy currently uses Select Automation shop pricing and checkout.
Cables:
Cable designation: 2Y(ST)CY 1x4x0.5/1.0-100-GN.
Design of shield: Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires.
Cable length: 10 m.
Number of electrical cores: 4.
Outer diameter of inner conductor: 0.5 mm.
Outer diameter of core insulation: 1 mm.
Outer diameter of cable sheath: 5 mm.
Number of bending cycles: 1 000 000; cable carrier compliant for 1 million bending cycles with a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s².
Permissible bending radius, single bend, min.: 20 mm.
Permissible bending radius, multiple bends, min.: 40 mm.
Bending radius for continuous bending: 100 mm.
Color of cable sheath: Green.
Color of core insulation of data cores: white / yellow / blue / orange.
Weight per length: 34 kg/km.
Mechanics/material:
Outgoing feeder type: 90° cable outlet.
Material of cable sheath: PVC.
Material of core insulation: PE.
Material property:
Halogen-free: No.
Silicone-free: Yes.
