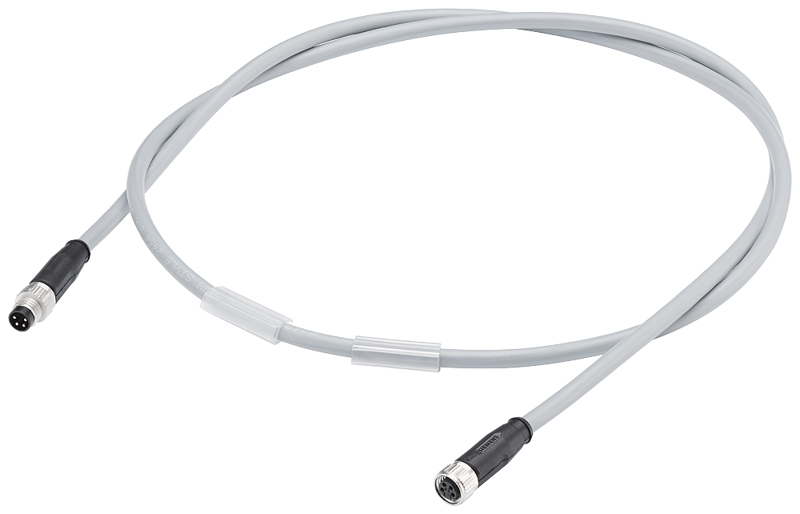

SIMATIC ET 200AL Power cable pre-assembled at both ends, PUR cable, 2.0 m
SKU: 6ES7194-2MH20-1AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Power cable M8, PUR cable with M8 connectors and sockets, 4-pole, 2.0m in length.
General information:
Product type designation: Power cable.
Product description: Flexible cable (4-core), preassembled at each end with a 4-pin M8 male / female connector.
Suitability for use:For connection to ET 200AL for 24 V DC power supply.
Degree and class of protection:
IP degree of protection: IP65/67.
Ambient conditions:
Ambient temperature during assembly, min.: -25 °C.
Ambient temperature during assembly, max.: 80 °C.
Ambient temperature during storage/transportation:
min.: -25 °C.
max.: 80 °C.
Buy currently uses Select Automation shop pricing and checkout.
Cables:
Cable designation: LIF9Y11YFHF 4x 0.50 mm².
Cable length: 2 m.
Number of electrical cores: 4.
Outer diameter of inner conductor: 1 mm.
Outer diameter of core insulation: 1.46 mm.
Outer diameter of cable sheath: 5.1 mm.
Number of bending cycles: 2 000 000; cable carrier compliant for 2 million bending cycles with a bending radius of 51 mm, a speed of 5 m/s and an acceleration of 5 m/s².
Permissible bending radius, single bend, min.: 26 mm.
Permissible bending radius, multiple bends, min.: 51 mm.
Bending radius for continuous bending: 51 mm.
Color of cable sheath: Grey.
Color of core insulation of data cores: white / brown / blue / black.
Weight per length: 44 kg/km.
Mechanics/material:
Outgoing feeder type: 180° cable outlet.
Material of cable sheath: PE-PUR.
Material of core insulation: PP.
Material property:
Halogen-free: Yes.
Silicone-free: Yes.
