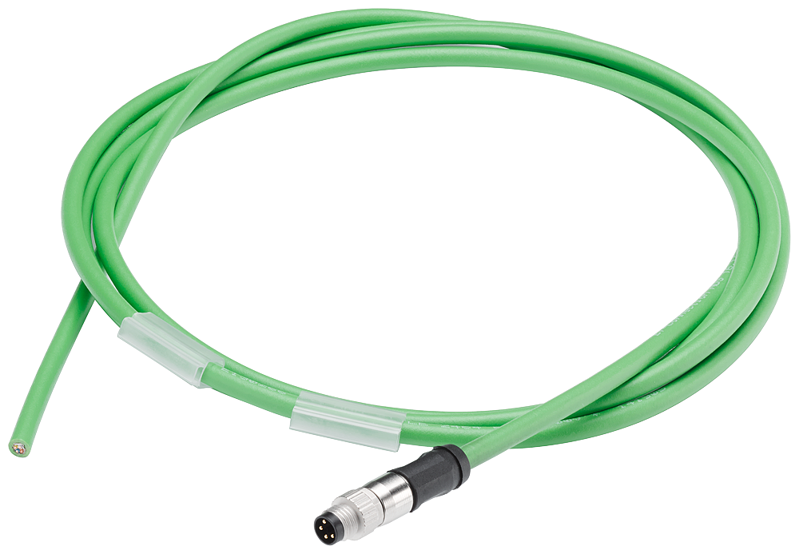

SIMATIC ET 200AL Bus cable pre-assembled at one end, PUR cable, 10 m

Specifications: Flexible cable (4-core) preassembled at one end with 1x M8 plug, 4-pin, shielded. Suitability for use: for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67. IP degree of protection: IP65/67. Ambient temperature during assembly: Minimum: -30 °C. Maximum: 80 °C. Ambient temperature during storage/transportation: Minimum: -40 °C. Maximum: 80 °C. Cables: Design of shield: Overlapped aluminium-clad foil, sheathed in a braid of tin-plated copper wires. Cable length: 10 m. Number of electrical cores: 4. Outer diameter of inner conductor: 0.5 mm. Outer diameter of core insulation: 1 mm. Outer diameter of cable sheath: 5 mm. Number of bending cycles: 1 000 000; cable carrier compliant for 1 million bending cycles with a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s². Permissible bending radius, single bend, min: 20 mm. Permissible bending radius, multiple bends, min: 40 mm. Bending radius for continuous bending: 100 mm. Colour of cable sheath: green. Colour of core insulation of data cores: white / yellow / blue / orange. Weight per length: 34 kg/km. Mechanics/material: Outgoing feeder type: 180° cable outlet. Material of cable sheath: PUR. Material of core insulation: PE. Material property: Halogen-free, Silicone-free.
