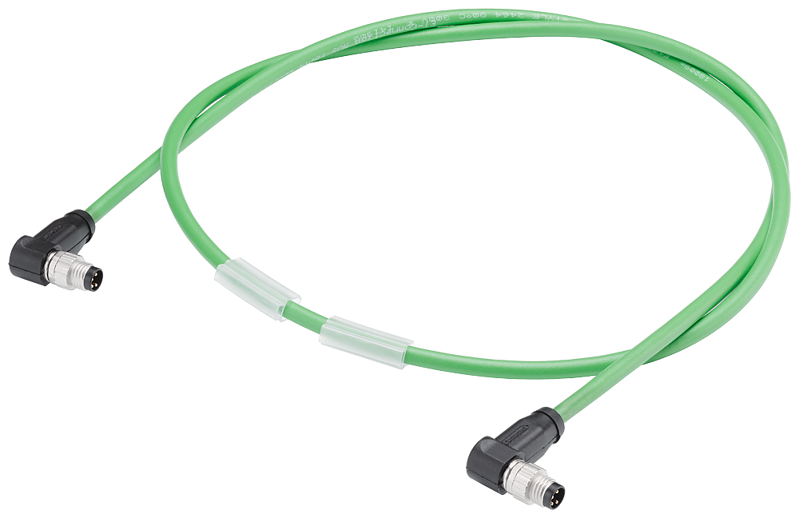

SIMATIC ET 200AL Bus cable pre-assembled at both ends, PUR cable, angled 15m
SKU: 6ES7194-2MN15-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Bus cable used to link the ET M8, PUR cable, 15 m in length, built on both ends with two M8 connectors that are angled, 4-pole, and shielded.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Flexible cable (4-core), preassembled at both ends with 2x M8 plugs, angled, 4 pin, shielded.
Suitability for use: for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67.
IP degree of protection: IP65/67.
Ambient temperature during assembly:
Minimum: -30 °C.
Maximum: 80 °C.
Ambient temperature during storage/transportation:
Minimum: -40 °C.
Maximum: 80 °C.
Cables:
Design of shield: Overlapped aluminium-clad foil, sheathed in a braid of tin-plated copper wires.
Cable length: 15 m.
Number of electrical cores: 4.
Outer diameter of inner conductor: 0.5 mm.
Outer diameter of core insulation: 1 mm.
Outer diameter of cable sheath: 5 mm.
Permissible bending radius, single bend, min: 20 mm.
Permissible bending radius, multiple bends, min: 40 mm.
Bending radius for continuous bending: 100 mm.
Colour of cable sheath: green.
Colour of core insulation of data cores: white / yellow / blue / orange.
Weight per length: 34 kg/km.
Mechanics/material:
Outgoing feeder type: 90-degree cable outlet.
Material of cable sheath: PUR.
Material of core insulation: PE.
Material property: Halogen-free, Silicone-free.
