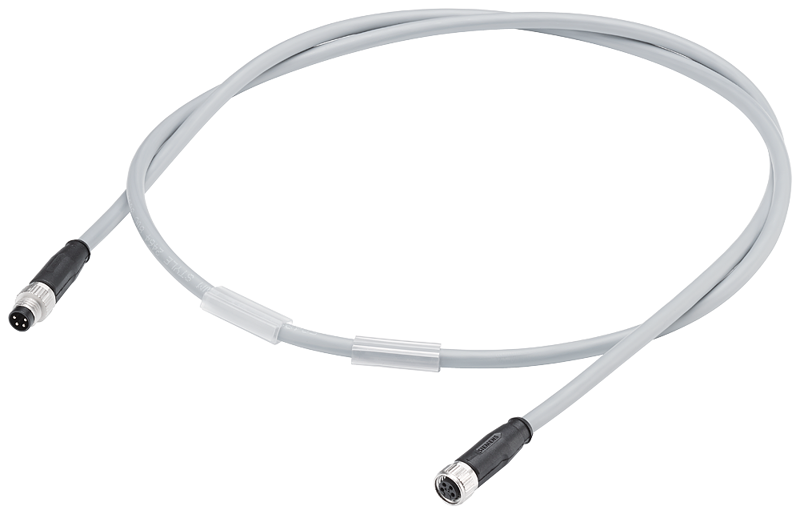

SIMATIC ET 200AL Power cable pre-assembled at both ends, PUR cable, 15 m

Specifications: Flexible cable (4-core) preassembled at each end with a 4-pin M8 male / female connector. Suitability for use: For connection to ET 200AL for 24 V DC power supply. IP degree of protection: IP65/67. Ambient temperature during assembly: Minimum: -25 °C. Maximum: 80 °C. Ambient temperature during storage/transportation: Minimum: -25 °C. Maximum: 80 °C. Cables: Cable length: 15 m. Number of electrical cores: 4. Outer diameter of inner conductor: 1 mm. Outer diameter of core insulation: 1.46 mm. Outer diameter of cable sheath: 5.1 mm. Number of bending cycles: 2 000 000; cable carrier compliant for 2 million bending cycles with a bending radius of 51 mm, a speed of 5 m/s and an acceleration of 5 m/s². Permissible bending radius, single bend, min: 26 mm. Permissible bending radius, multiple bends, min: 51 mm. Bending radius for continuous bending: 51 mm. Colour of cable sheath: grey. Colour of core insulation of data cores: white / brown / blue / black. Weight per length: 44 kg/km. Mechanics/material: Outgoing feeder type: 180° cable outlet. Material of cable sheath: PE-PUR. Material of core insulation: PP. Material property: Halogen-free, Silicone-free.
