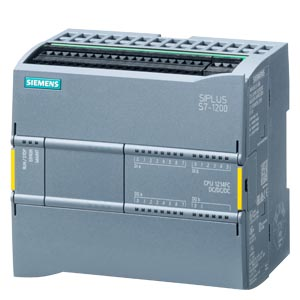

Siemens S7-1200 CPU1214FC (DC/DC/RLY)
SKU: 6ES7214-1HF40-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
S7-1200 CPU1214FC (DC/DC/RLY):
Compact CPU
DC/DC/relay
Onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC
Power supply: DC 20.4-28.8 V DC
Program/data memory 200 KB
Supply voltage:
Rated value (DC)
24 V DC: Yes
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Buy currently uses Select Automation shop pricing and checkout.
Input current:
Current consumption (rated value): 500 mA; CPU only
Current consumption, max.: 1 500 mA; CPU with all expansion modules
Inrush current, max.: 12 A; at 28.8 V
I²t: 0.8 A²·s
Output current:
For backplane bus (5 V DC), max.: 1 600 mA; Max. 5 V DC for SM and CM
Encoder supply:
24 V encoder supply
24 V: L+ minus 4 V DC min.
Power loss:
Power loss, typ.: 12 W
Work memory:
Integrated: 200 kbyte
Load memory:
Integrated: 4 Mbyte
Plug-in (SIMATIC Memory Card), max.: with SIMATIC memory card
Backup:
Present: Yes
Maintenance-free: Yes
Without battery: Yes
Dimensions:
Width: 110 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 435 g
