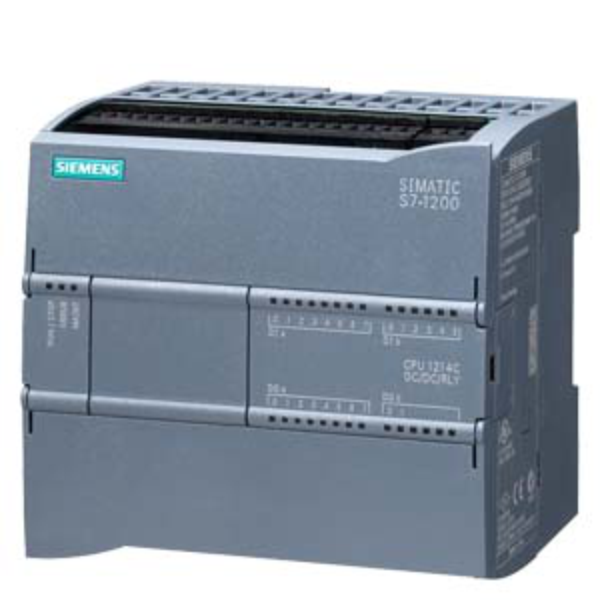

Siemens S7-1200 CPU1214C (DC/DC/RLY)
SKU: 6ES7214-1HG40-0XB0
Price on request
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CPU 1214C is a compact PLC from the S7-1200 series, featuring 14 digital inputs, 10 relay outputs, and 2 analog inputs.
It is engineered for cost-effective control in applications like HVAC, material handling, and building automation.
With integrated PROFINET, high-speed counters, and support for OPC UA, it offers a strong balance of performance, flexibility, and connectivity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Core Specs:
Firmware Version: V4.7.
Work Memory: 150 KB.
Load Memory: Up to 4 MB (via SIMATIC Memory Card).
Power Supply: 24 V DC (20.4–28.8 V range).
Power Loss: ~12 W.
Processing Speed:
Bit ops: 0.08 µs.
Word ops: 1.7 µs.
Float ops: 2.3 µs.
Onboard I/O:
Digital Inputs: 14 × 24 V DC.
6 inputs usable for high-speed counting (up to 100 kHz).
Digital Outputs: 10 × Relay (2 A max).
Analog Inputs: 2 × 0–10 V DC.
No Analog Outputs.
Communication:
PROFINET Interface: 1 × RJ45 (100 Mbps).
Protocols Supported:
PROFINET IO Controller & Device.
TCP/IP, DCP, LLDP, SNMP.
OPC UA Server (Basic license required).
Modbus TCP.
Web Server: Supported with user-defined pages.
S7 Routing: Yes.
Max Connections: Up to 68 total (PG, HMI, S7, Web, OPC UA).
Environmental & Compliance:
Operating Temp: –20 °C to +60 °C.
Storage Temp: –40 °C to +70 °C.
Protection Class: IP20.
Vibration Resistance: IEC 60068-2 compliant.
Marine Approvals: ABS, DNV, LRS, NK, CCS.
Certifications: CE, UL, FM, RCM, KC.
Global Warming Potential: ~111 kg CO₂ eq (lifecycle).
