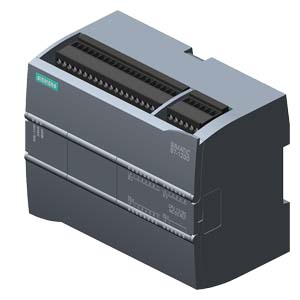

Siemens S7-1200 CPU1215C (AC/DC/RLY)
SKU: 6ES7215-1BG40-0XB0
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
S7-1200 CPU1215C (AC/DC/RLY):
Compact CPU
AC/DC/relay
2 PROFINET ports
Onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC
2 AO 0-20 mA DC
Power supply: AC 85-264 V AC at 47-63 Hz
Program/data memory: 125 KB
Supply voltage:
Rated value (AC)
120 V AC: Yes
230 V AC: Yes
Permissible range, lower limit (AC): 85 V
Permissible range, upper limit (AC): 265 V
Buy currently uses Select Automation shop pricing and checkout.
Input current:
Current consumption (rated value): 100 mA at 120 V AC; 50 mA at 240 V AC
Current consumption, max.: 300 mA at 120 V AC; 150 mA at 240 V AC
Inrush current, max.: 20 A; at 264 V
I²t: 0.8 A²·s
Output current:
For backplane bus (5 V DC), max.: 1 600 mA; Max. 5 V DC for SM and CM
Encoder supply:
24 V encoder supply
24 V: 20.4 to 28.8V
Power loss:
Power loss, typ.: 14 W
Work memory:
Integrated: 200 kbyte
Load memory
Integrated: 4 Mbyte
Plug-in (SIMATIC Memory Card), max.: with SIMATIC memory card
Backup:
Present: Yes
Maintenance-free: Yes
Without battery: Yes
Dimensions:
Width: 130 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 550 g
