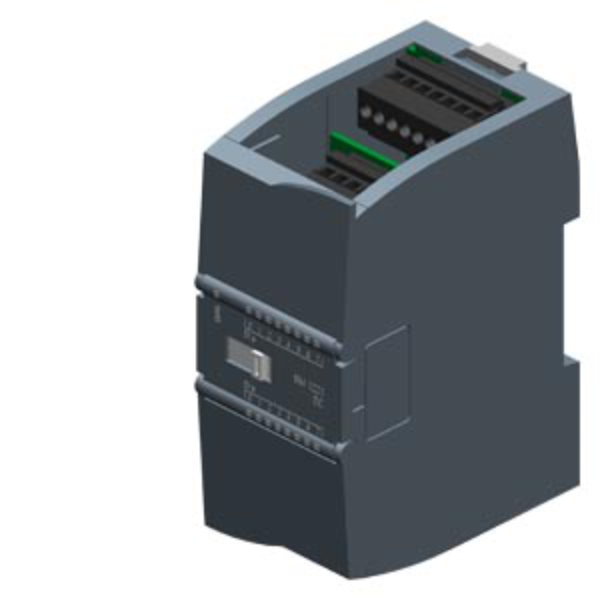

Siemens S7-1200 SM1221 Digital DI 16x24 V DC
SKU: 6ES7221-1BH32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SIMATIC S7-1200 Digital input SM 1221, 16 DI, 24 V DC, Sink/Source:
Product type designation: SM 1221, DI 16x24 V DC
Supply voltage:
Rated value (DC): 24 V
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Buy currently uses Select Automation shop pricing and checkout.
Output voltage / header:
Supply voltage of the transmitters / header present: Yes
Power loss:
Power loss, typ.: 2.5 W
Digital inputs:
Number of digital inputs: 16
In groups of: 4
Input characteristic curve in accordance with IEC 61131, type 1: Yes
Dimensions:
Width: 45 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 210 g
