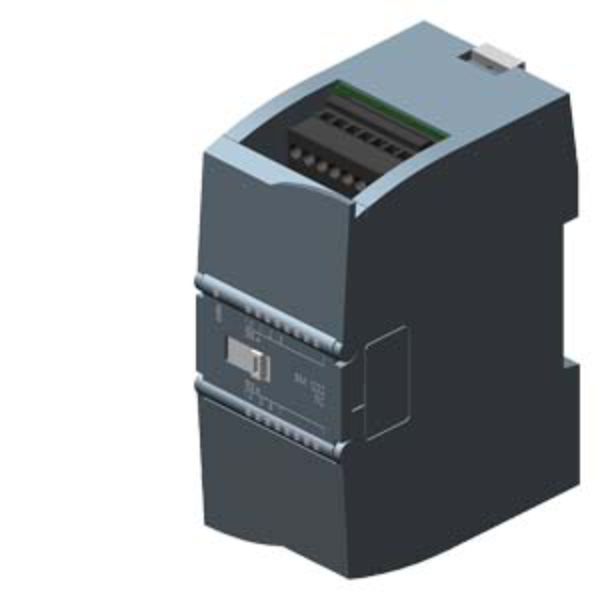

Siemens S7-1200 SM1222 Digital DQ 8x24 V DC 0.5 A
SKU: 6ES7222-1BF32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SIMATIC S7-1200 Digital output SM 1222:
Product type designation: SM 1222, DQ 8x24 V DC/0.5 A
Supply voltage:
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Input current:
From backplane bus 5 V DC, max.: 120 mA
Power loss:
Power loss, typ.: 1.5 W
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Number of digital outputs: 8
In groups of: 1
Short-circuit protection No: to be provided externally
Limitation of inductive shutdown voltage to: typ. (L+) -48 V
Ambient temperature during operation:
Min.: -20 °C
Max.: 60 °C
Horizontal installation, min.: -20 °C
Horizontal installation, max.: 60 °C
Vertical installation, min.: -20 °C
Vertical installation, max.: 50 °C
Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
Width: 45 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 180 g
