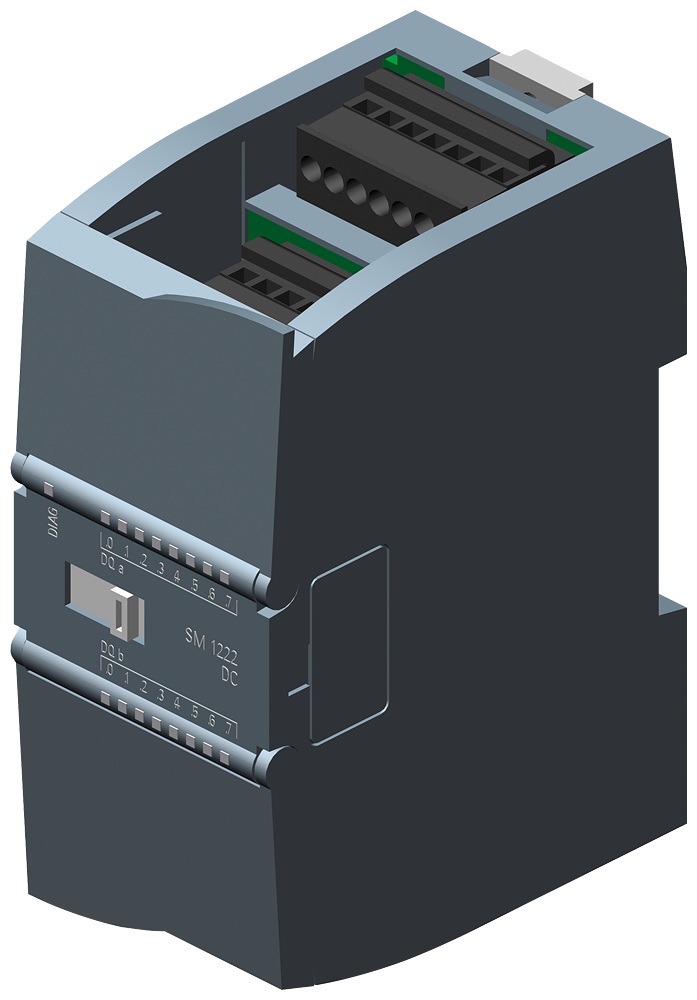

SIMATIC S7-1200 SM 1222, DQ 16x24 V DC/0.5 A
SKU: 6ES7222-1BH32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1200, digital output SM1222, 16 DO, 24 V DC, transistor 0.5 A.
General information:
Product type designation: SM 1222, DQ 16x24 V DC/0.5 A
Supply voltage:
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
Input current:
from backplane bus 5 V DC, max.: 140 mA.
Power loss:
Power loss, typ.: 2.5 W.
Digital outputs:
Number of digital outputs: 16.
in groups of: 1.
Short-circuit protection: No; to be provided externally.
Limitation of inductive shutdown voltage to: typ. (L+) -48 V.
Switching capacity of the outputs:
with resistive load, max.: 0.5 A.
on lamp load, max.: 5 W.
Output voltage:
Rated value (DC): 24 V.
for signal "0", max.: 0.1 V; with 10 kOhm load.
for signal "1", min.: 20 V DC.
Output current:
for signal "1" rated value: 0.5 A.
for signal "0" residual current, max.: 10 µA.
Output delay with resistive load:
"0" to "1", max.: 50 µs.
"1" to "0", max.: 200 µs.
Total current of the outputs (per group):
horizontal installation:
up to 50 °C, max.: 8 A; Current per mass.
Cable length:
shielded, max.: 500 m.
unshielded, max.: 150 m.
Buy currently uses Select Automation shop pricing and checkout.
Interrupts/diagnostics/status information:
Alarms:
Diagnostic alarm: Yes.
Diagnostics indication LED:
for status of the outputs: Yes.
Potential separation:
Potential separation digital outputs:
between the channels, in groups of: 1.
between the channels and backplane bus: 500 V AC.
Degree and class of protection:
IP degree of protection: IP20.
Standards, approvals, certificates:
CE mark: Yes.
CSA approval: Yes.
UL approval: Yes.
cULus: Yes.
FM approval: Yes.
RCM (formerly C-TICK): Yes.
KC approval: Yes.
Marine approval: Yes.
Ambient conditions:
Free fall:
Fall height, max.: 0.3 m; five times, in product package.
Ambient temperature during operation:
min.: -20 °C.
max.: 60 °C.
horizontal installation, min.: -20 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -20 °C.
vertical installation, max.: 50 °C.
permissible temperature change: 5°C to 55°C, 3°C / minute.
Ambient temperature during storage/transportation:
min.: -40 °C.
max.: 70 °C.
Air pressure acc. to IEC 60068-2-13:
Storage/transport, min.: 660 hPa.
Storage/transport, max.: 1 080 hPa.
Relative humidity:
Operation at 25 ℃ without condensation, max.: 95 %.
connection method:
required front connector: Yes.
Mechanics/material:
Enclosure material (front):
Plastic: Yes.
Dimensions:
Width: 45 mm.
Height: 100 mm.
Depth: 75 mm.
Weights:
Weight, approx.: 220 g.
