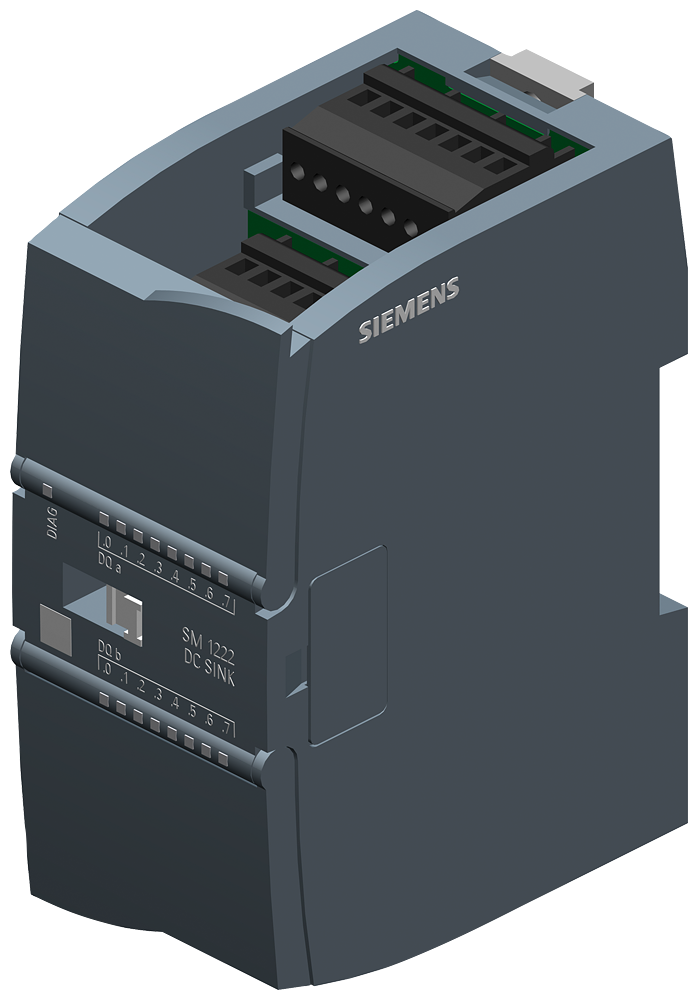

SIMATIC S7-1200 SM 1222, DO 16x 24 V DC/0.5 A Sink
SKU: 6ES7222-1BH32-1XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1200, Digital output SM 1222, 16 DO, 24 V DC, sourcing (sinking output), NPN transistor 0.5 A.
General information:
Product type designation: SM 1222, DO 16x 24 V DC/0.5 A Sink
Supply voltage:
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
Input current:
from backplane bus 5 V DC, max.: 140 mA.
Power loss:
Power loss, typ.: 2.5 W.
Digital outputs:
Number of digital outputs: 16.
in groups of: 1.
Current-sinking: Yes.
Short-circuit protection: No; to be provided externally.
Limitation of inductive shutdown voltage to: Typ 45 V.
Switching capacity of the outputs:
with resistive load, max.: 0.5 A.
on lamp load, max.: 5 W.
Output voltage:
Rated value (DC): 24 V.
for signal "0", max.: L+ minus 0.75 V DC with 10k Load.
for signal "1", min.: 0,5 V.
Output current:
for signal "1" rated value: 0.5 A.
for signal "0" residual current, max.: 75 µA.
Output delay with resistive load:
"0" to "1", max.: 20 µs.
"1" to "0", max.: 350 µs.
Total current of the outputs (per group):
horizontal installation:
up to 50 °C, max.: 8 A; Current per mass.
Cable length:
shielded, max.: 500 m.
unshielded, max.: 150 m.
