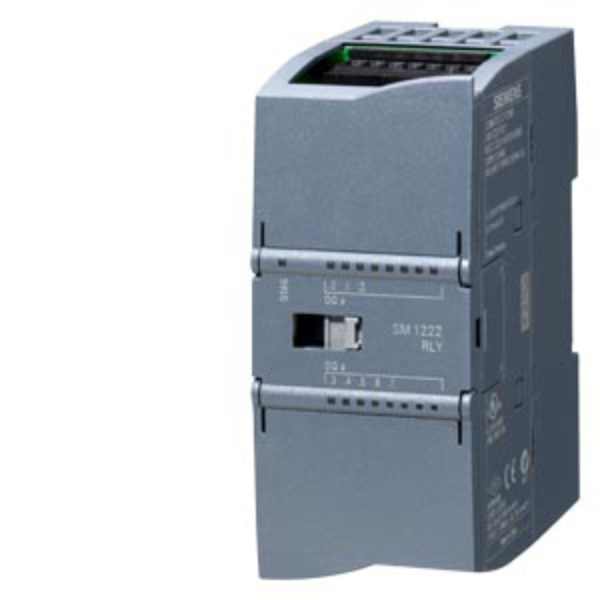

Siemens S7-1200 SM1222 Digital DQ 8xRLY 30 V DC/250 V AC 2 A
SKU: 6ES7222-1HF32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SIMATIC S7-1200 Digital output SM 1222:
Product type designation: SM 1222, DQ 8x relay/2 A
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
From backplane bus 5 V DC, max.: 120 mA
Digital outputs:
From load voltage L+, max.: 11 mA/relay coil
Power loss:
Power loss, typ.: 4.5 W
Buy currently uses Select Automation shop pricing and checkout.
Output voltage:
Rated value (DC): 5 V DC to 30 V DC
Rated value (AC): 5 V AC to 250 V AC
Ambient temperature during operation:
Min.: -20 °C
Max.: 60 °C
Horizontal installation, min.: -20 °C
Horizontal installation, max.: 60 °C
Vertical installation, min.: -20 °C
Vertical installation, max.: 50 °C
Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
Width: 45 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 190 g
