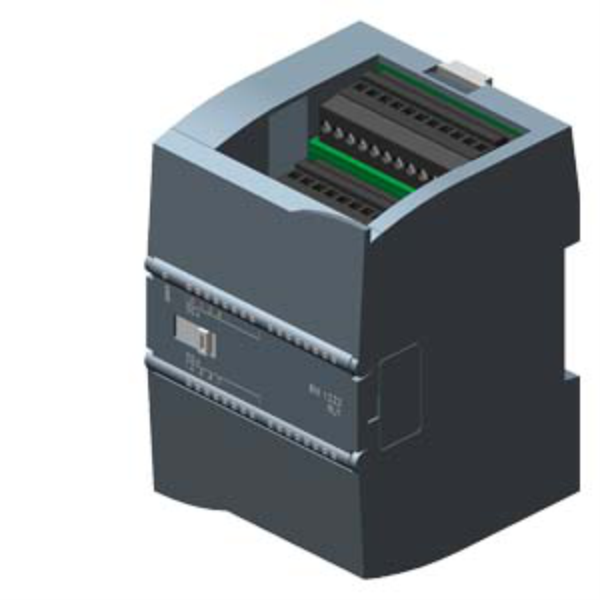

Siemens S7-1200 SM1222 Digital DQ 8xRLY Switchable 30 V DC/250 V AC 2 A
SKU: 6ES7222-1XF32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SIMATIC S7-1200, Digital output SM 1222:
Product type designation: SM 1222, DQ 8x relay/2 A
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Input current:
From backplane bus 5 V DC, max.: 140 mA
From load voltage L+, max.: 16.7 mA/relay coil
Power loss, typ.: 5 W
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Number of digital outputs: 8
In groups of: 1
Short-circuit protection: No; to be provided externally
Ambient temperature during operation:
Min.: -20 °C
Max.: 60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60°C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical
Horizontal installation, min.: -20 °C
Horizontal installation, max.: 60 °C
Vertical installation, min.: -20 °C
Vertical installation, max.: 50 °C
Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
Width: 70 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 310 g
