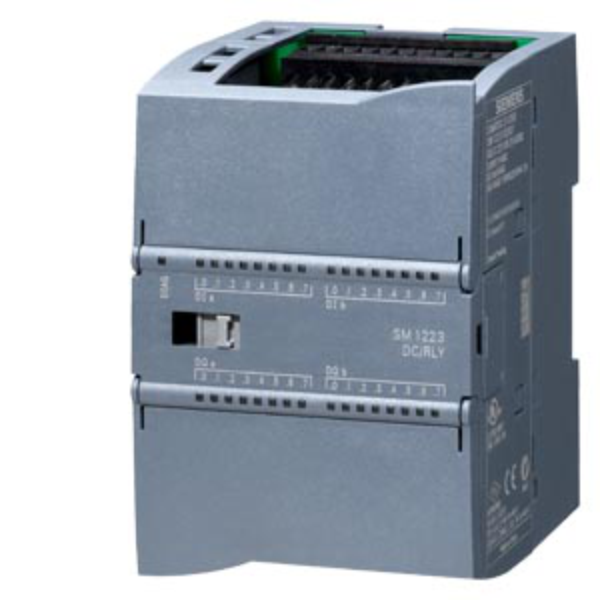

Siemens S7-1200 SM1223 Digital DI/DQ 16x24 V DC / 16xRLY 30 V DC, 250 V AC 2 A
SKU: 6ES7223-1PL32-0XB0
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SIMATIC S7-1200 Digital I/O SM 1223:
Product type designation: SM 1223, DI 16x24 V DC, DQ 16x relay
Rated value (DC): 24 V
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
From backplane bus 5 V DC, max.: 180 mA
Digital inputs:
From load voltage L+ (without load), max.: 4 mA/input 11 mA/relay
Supply voltage of the transmitters / header:
Present: Yes
Power loss:
Power loss, typ.: 10 W
Buy currently uses Select Automation shop pricing and checkout.
Digital inputs:
Number of digital inputs: 16
In groups of: 2
Input characteristic curve in accordance with IEC 61131, type 1: Yes
Ambient temperature during operation:
Min.: -20 °C
Max.: 60 °C; Number of simultaneously activated outputs: 8 (no adjacent points) at 60°C horizontal or 50 °C vertical, 16 at 55 °C horizontal or 45 °C vertical
Horizontal installation, min.: -20 °C
Horizontal installation, max.: 60 °C
Vertical installation, min.: -20 °C
Vertical installation, max.: 50 °C
Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
Width: 70 mm
Height: 100 mm
Depth: 75 mm
Weights:
Weight, approx.: 350 g
