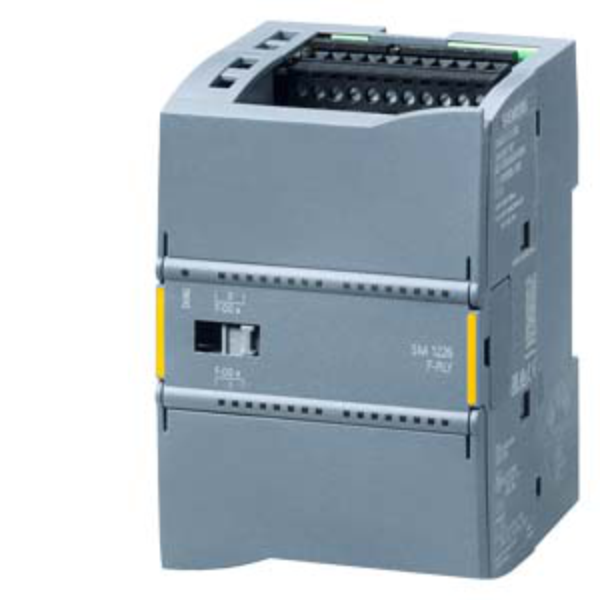

Siemens S7-1200 SM1226 Fail-safe F-DQ RLY 2x5 A 30 V DC/250 V AC
SKU: 6ES7226-6RA32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module is tailored for functional safety applications, offering 2 relay outputs with high switching capacity and compliance with PL e (ISO 13849-1) and SIL 3 (IEC 61508) standards.
It’s ideal for actuating devices in safety-critical zones like cranes, elevators, and HVAC systems with emergency stop or fail-safe requirements.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Electrical Characteristics:
Supply Voltage Range: 20.4 V to 28.8 V DC.
Backplane Bus Current: Max 120 mA.
Power Loss: ~10 W.
Load Voltage L+ Current: Max 300 mA.
Digital Outputs (Relay Type):
Number of Outputs: 2 (each with 2 circuits).
Rated Output Voltage:
DC: 5–30 V.
AC: 5–250 V.
Max Output Current:
5 A per circuit.
10 A total per module.
Switching Frequency:
Inductive Load:
DC: 0.1 Hz (DC-13).
AC: 2 Hz (AC-15).
Resistive Load: 2 Hz.
Cable Length: Up to 200 m (shielded or unshielded).
Safety & Diagnostics:
Safety Standards: PL e (ISO 13849-1), SIL 3 (IEC 61508).
PFDavg (Low Demand Mode): < 1.00 × 10⁻⁵.
PFH (High Demand Mode): < 4.00 × 10⁻⁹.
Diagnostics LED: Yes (output status).
Short-Circuit Protection: No.
Environmental & Mechanical:
Operating Temp: 0 to 55 °C.
Storage Temp: –40 to +70 °C.
Humidity: Up to 95% (non-condensing).
Dimensions (W x H x D): 70 x 100 x 75 mm.
Weight: ~300 g.
Protection Rating: IP20.
Mounting: DIN rail.
Compliance & Approvals:
CE, UL, FM, RCM, UKCA.
TÜV-certified for hazardous locations.
Functional Safety Type Examination Certificate.
eClass: 27-24-22-04.
ETIM Class: EC001419.
