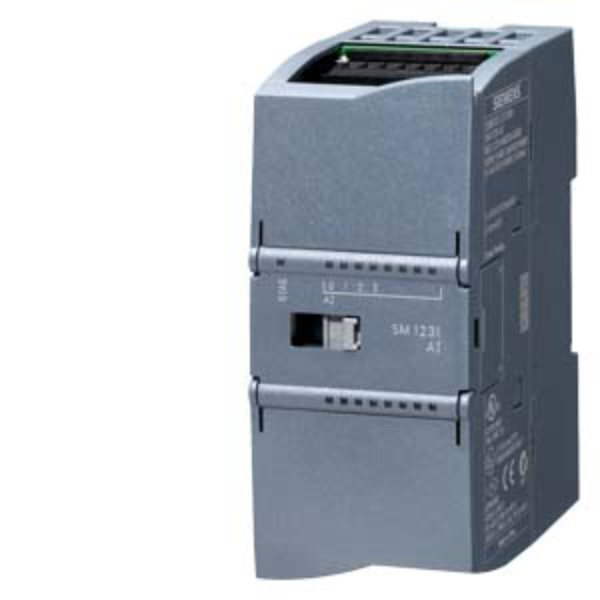

SIMATIC S7-1200, Analog input, SM 1231, 4 AI
SKU: 6ES7231-4HD32-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The SM 1231 provides 4 differential analog inputs with configurable voltage or current ranges.
It’s ideal for precise analog signal acquisition in HVAC, crane, and elevator systems, especially where ±10 V or 4–20 mA sensors are used.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Electrical Characteristics:
Supply Voltage: 24 V DC.
Backplane Bus Current: 80 mA (typical).
Power Loss: 1.5 W (typical).
Input Protection Limits:
Voltage: up to 35 V.
Current: up to 40 mA.
Analog Inputs:
Channels: 4 differentials.
Voltage Ranges: ±10 V, ±5 V, ±2.5 V.
Current Ranges: 0–20 mA, 4–20 mA.
Input Resistance:
Voltage: ≥9 MΩ.
Current: 280 Ω.
Resolution: 12-bit + sign (13-bit ADC).
Cycle Time (all channels): Max 625 µs.
Smoothing: Configurable (None, Low, Medium, High).
Accuracy & Diagnostics:
Basic Error (25 °C): ±0.1%.
Extended Error (up to 55 °C): ±0.2%.
Diagnostics:
Wire break detection.
Supply voltage monitoring.
Diagnostic alarms.
LEDs for input status and maintenance.
Mechanical & Environmental:
Dimensions (W x H x D): 45 x 100 x 75 mm.
Mounting: DIN rail.
Protection Rating: IP20.
Operating Temp: –20 to +60 °C.
Storage Temp: –40 to +70 °C.
Humidity: Up to 95% (non-condensing).
Shock/Vibration: IEC 60068 compliant.
Compliance & Approvals:
CE, UL, CSA, FM, RCM, KC.
Marine: DNV, LRS, BV, NK, RINA, CCS.
ATEX, IECEx.
Environmental Product Declaration (EPD).
Global Warming Potential: 43.1 kg CO₂ eq.
