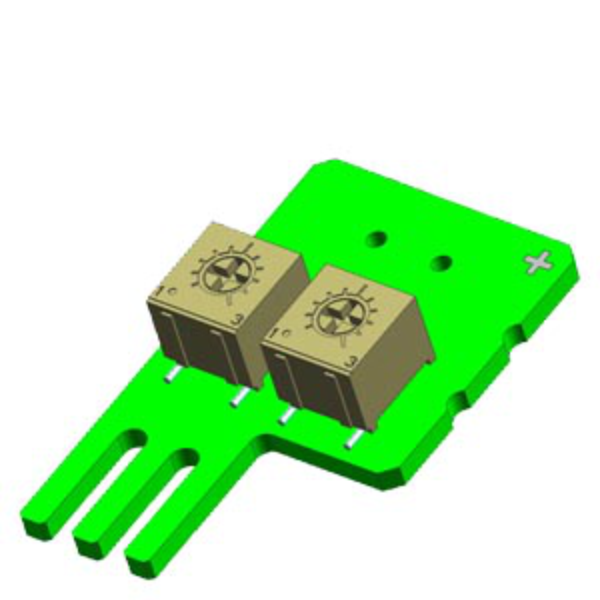

Siemens S7-1200 Potentiometer: for all CPUs
SKU: 6ES7274-1XA30-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module is a signal board for the S7-1200 CPU family, offering 2 analog inputs in a space-saving form factor.
It connects directly to the CPU via the signal board interface, allowing analog expansion without increasing the footprint—ideal for applications requiring temperature, pressure, or flow monitoring in tight control cabinets.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: Analog Input Signal Board.
Number of Analog Inputs: 2.
Input Type: Voltage (0–10 V), Current (0–20 mA, 4–20 mA).
Resolution: 12 bits.
Input Accuracy: ±0.5% full scale.
Isolation: Galvanic isolation between channels.
Connection Type: 10-pin connector.
Mounting: Directly on CPU via signal board slot.
Dimensions (W × H × D): ~38 × 62 × 21 mm.
Net Weight: ~60 g.
Ambient Temperature (Operation): –20 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Protection Class: IP20.
Certifications: CE, cULus, KC.
