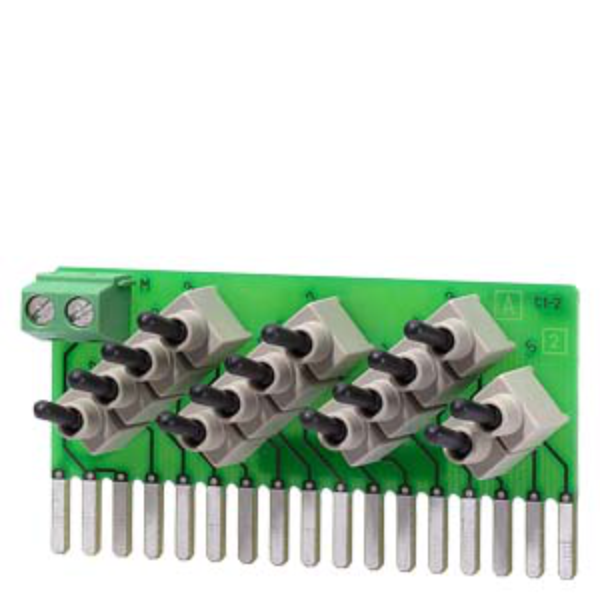

Siemens S7-1200 Simulator (14 positions for CPU 1214C/1215C)
SKU: 6ES7274-1XH30-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module is a digital output signal board for the S7-1200 CPU family, offering 16 digital outputs in a compact form factor.
It connects directly to the CPU via the signal board interface, allowing output expansion without increasing the overall footprint—ideal for modular control systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: Digital Output Signal Board.
Number of Outputs: 16.
Output Type: Transistor (source).
Rated Output Voltage: 24 V DC.
Max Output Current per Channel: 0.5 A.
Total Current (per group): 3 A max.
Isolation: Galvanic isolation between groups.
Connection Type: 40-pin connector.
Mounting: Directly on CPU via signal board slot.
Dimensions (W × H × D): ~38 × 62 × 21 mm.
Net Weight: ~60 g.
Ambient Temperature (Operation): –20 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Protection Class: IP20.
Certifications: CE, cULus, KC.
