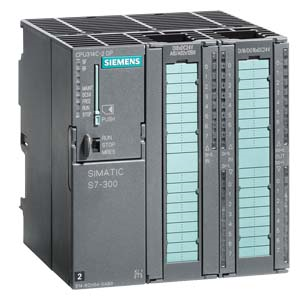

SIEMENS SIMATIC S7-300 CPU 314C-2 DP
SKU: 6ES7314-6CH04-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-300 CPU 314C-2 DP Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated DP interface, 24 V DC power supply, work memory 192 KB, front connection (2x 40-pole), and Micro Memory Card are required.
Dimensions:
Width: 120 mm.
Height: 125 mm.
Depth: 130 mm.
Weights:
Weight, approx.: 680 g.
Buy currently uses Select Automation shop pricing and checkout.
General information:
HW functional status: 01.
Firmware version: V3.3.
Engineering with:
Programming package: STEP 7 V5.5 + SP1 or higher or STEP 7 V5.3 + SP2 or higher with HSP 203.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
external protection for power supply lines (recommendation): Miniature circuit breaker, type C; min. 2 A; miniature circuit breaker type B, min. 4 A.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Repeat rate, min.: 1 s.
Load voltage L+:
Digital inputs:
load voltage / at digital input / at DC / rated value: 24 V.
Reverse polarity protection: Yes.
Digital outputs:
Rated value (DC): 24 V.
Reverse polarity protection: No.
Input current:
Current consumption (rated value): 880 mA.
Current consumption (in no-load operation), typ.: 150 mA.
Inrush current, typ.: 5 A.
I²t: 0.7 A²·s.
Digital inputs:
from load voltage L+ (without load), max.: 80 mA.
Digital outputs:
from load voltage L+, max.: 50 mA.
Power loss:
Power loss, typ.: 13 W.
Memory:
Work memory:
Integrated: 192 kbyte.
Expandable: No.
Load memory:
Plug-in (MMC): Yes.
Plug-in (MMC), max.: 8 Mbyte.
Data management on MMC (after last programming), min.: 10 a.
Backup:
Present: Yes; Guaranteed by MMC (maintenance-free).
Without battery: Yes; Program and data.
