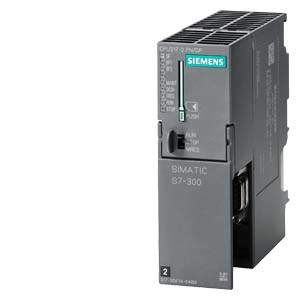

SIEMENS SIMATIC S7-300 CPU 317-2 PN/DP
SKU: 6ES7317-2EK14-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The CPU 317-2 PN/DP is a high-performance central processing unit designed to handle difficult automation tasks.
It has two communication interfaces—PROFIBUS DP and PROFINET with a two-port switch—making it excellent for hybrid network designs, distributed I/O, and time-critical control applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
General Features:
CPU type: SIMATIC S7-300 CPU 317-2 PN/DP.
Firmware version: V3.2.
Programming software: STEP 7 V5.5 or higher.
Memory card: Micro Memory Card (MMC) up to 8 MB.
Real-time clock: Retentive & synchronically (6-week backup).
Isochronous mode: Supported (via DP or PROFINET, not simultaneously).
Electrical Characteristics:
Supply voltage: 24 V DC (range: 20.4–28.8 V).
Rated current consumption: 750 mA.
Inrush current: 4 A.
Power loss: ~4.65 W.
Mains buffering: 5 ms.
Memory & Processing:
Work memory: 1 MB.
Load memory: via MMC (max. 8 MB).
Bit operation time: 0.025 µs.
Word operation time: 0.03 µs.
Floating point operation: 0.16 µs.
Max blocks: 2048 DBs, FCs, FBs (64 KB each).
Data & Addressing:
I/O address space: 8192 bytes each for inputs and outputs.
Process image: 8192 bytes default, adjustable.
Retentive flag memory: MB 0–4095 (preset MB 0–15).
Timers/Counters: 512 S7 timers & counters, IEC types supported.
Retentive data area: up to 256 KB.
Local data per block: up to 2048 bytes.
Interfaces & Communication:
Interface 1: RS485 (MPI/PROFIBUS DP).
Transmission rate: up to 12 Mbit/s.
Protocols: MPI, PROFIBUS DP master/slave.
Max DP devices: 124.
Supports SYNC/FREEZE, Equidistance, Isochronous mode.
Slave-to-slave communication: Supported.
Interface 2: PROFINET (2-port RJ45 switch).
Transmission rate: 10/100 Mbit/s.
Protocols: PROFINET IO Controller & Device, CBA, TCP/IP, ISO-on-TCP, UDP.
Max IO Devices: 128 (IRT support: 64).
Media redundancy: Supported.
Web server: Integrated.
IP address change at runtime: Supported.
Shared device & prioritized startup: Supported.
Max connections: 32 total.
PG/OP: 31.
S7 communication: 16.
Routing: Supported.
Open IE communication: Supported (TCP/IP, ISO-on-TCP, UDP).
Expansion & Modules:
Expansion units: up to 3.
Max modules per rack: 8.
Max racks: 4.
Supported modules: FM (8), CP PtP (8), CP LAN (10).
Environmental Conditions:
Operating temperature: 0°C to +60°C.
Storage temperature: -40°C to +70°C.
Shock resistance: 15 g over 11 ms.
Vibration resistance: IEC 60068-2-6 compliant.
Pollution degree: 2.
Dimensions & Weight:
Width: 40 mm.
Height: 125 mm.
Depth: 130 mm.
Weight: ~340 g.
Approvals & Compliance:
CE, UKCA, UL, ATEX, IECEx, RCM, CCC.
RoHS: Compliant.
Marine certifications: ABS, DNV, BV, LRS, NK, PRS.
