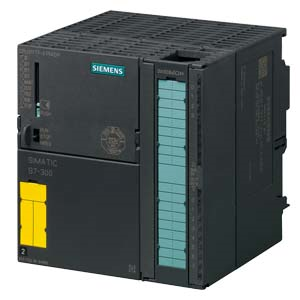

SIEMENS SIMATIC S7-300 CPU 317TF-3 PN/DP
SKU: 6ES7317-7UL10-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-300 with CPU 317TF-3 PN/DP is the central processing unit for PLC, technology, and safety duties.
Requirements: 1.5 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface DP (drive), 3rd interface Ethernet PROFINET with 2-port switch, integrated technology I/O, front connection (1x 40-pole), and a Micro Memory Card with a minimum capacity of 8MB.
Dimensions:
Width: 120 mm.
Height: 125 mm.
Depth: 130 mm.
Weights:
Weight, approx.: 640 g.
Buy currently uses Select Automation shop pricing and checkout.
General information:
HW functional status: 01.
Firmware version: CPU: V3.2; integrated technology V4.1.5.
Product function:
Isochronous mode: Yes; Via PROFIBUS DP or PROFINET interface.
Engineering with:
Programming package: STEP 7 V5.5 SP2 or higher; S7-Technology option package V4.2 SP3 or higher, Distributed Safety V5.4 SP5 or higher, S7-F Configuration Pack V5.5 SP10 or higher.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
external protection for power supply lines (recommendation): 2 A min.
Load voltage L+:
Rated value (DC): 24 V.
Reverse polarity protection: Yes.
Digital outputs:
Rated value (DC) 24 V; 2L+.
Reverse polarity protection No; 2L+.
Input current:
Current consumption (rated value): 1100 mA.
Current consumption (in no-load operation), typ.: 270 mA.
Inrush current, typ.: 6.5 A.
I²t: 1 A²·s.
Power loss:
Power loss, typ.: 8.5 W.
Memory:
Work memory:
Integrated: 1536 kbyte.
Expandable: No.
Load memory:
Plug-in (MMC): Yes.
Plug-in (MMC), max.: 8 Mbyte.
Data management on MMC (after last programming), min.: 10 a.
Backup:
Present: Yes; Guaranteed by MMC (maintenance-free).
Without battery: Yes; Program and data.
