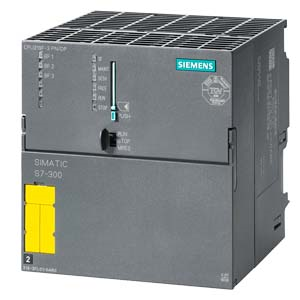

SIEMENS SIMATIC S7-300 CPU 319F-3 PN/DP
SKU: 6ES7318-3FL01-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Central processing unit with 2.5 MB of RAM, first interface MPI/DP 12 Mbit/s, second interface DP master/slave, SIMATIC S7-300 CPU319F-3 PN/DP
Third interface Ethernet PROFINET, Micro Memory Card is required.
Dimensions:
Width: 120 mm.
Height: 125 mm.
Depth: 130 mm.
Weights:
Weight, approx.: 1250 g.
Buy currently uses Select Automation shop pricing and checkout.
General information:
HW functional status: 01.
Firmware version: V3.2.
Product function:
Isochronous mode: Yes; Via 2nd PROFIBUS DP or PROFINET interface.
Engineering with:
Programming package: STEP 7 V5.5 or higher, Distributed Safety V5.4 SP4.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
external protection for power supply lines (recommendation): 2 A min.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Repeat rate, min.: 1 s.
Input current:
Current consumption (rated value): 1250 mA.
Current consumption (in no-load operation), typ.: 500 mA.
Inrush current, typ.: 4 A.
I²t: 1.2 A²·s.
Power loss:
Power loss, typ.: 14 W.
Memory:
Work memory:
Integrated: 2 560 kbyte.
Expandable: No.
Load memory:
Plug-in (MMC): Yes.
Plug-in (MMC), max.: 8 Mbyte.
Data management on MMC (after last programming), min.: 10 a.
Backup:
Present: Yes.
Without battery: Yes.
