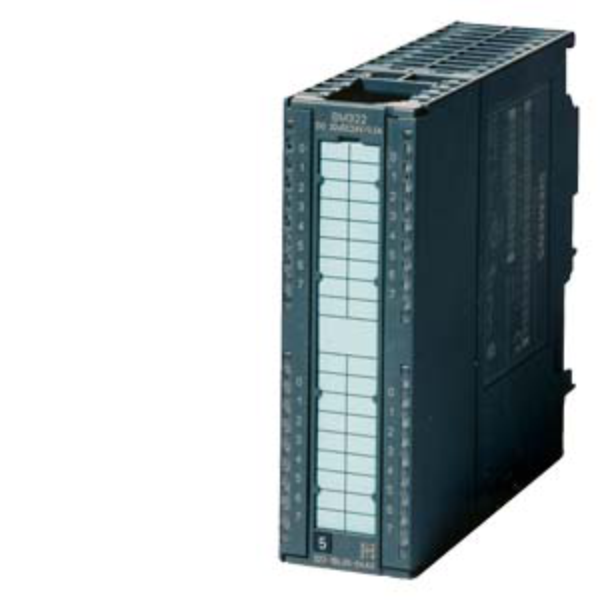

SIEMENS SIMATIC S7-300 SM 322 digital output high speed
SKU: 6ES7322-1BH10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SIMATIC S7-300:
Digital output SM 322 High Speed
Isolated
16 DQ
24 V DC
0.5A
1x 20-pole
Supply voltage:
Load voltage: L+
Rated value (DC): 24 V
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input current:
From load voltage L+ (without load), max.: 110 mA
From backplane bus 5 V DC, max.: 70 mA
Power loss typ.: 5 W
Digital outputs:
Number of digital outputs: 16
Short-circuit protection: Yes; Electronic
Response threshold, typ.: 1 A
Limitation of inductive shutdown voltage to: L+ (-53 V)
Controlling a digital input: Yes
Dimensions:
Width: 40 mm
Height: 125 mm
Depth: 120 mm
Weight, approx.: 200 g
