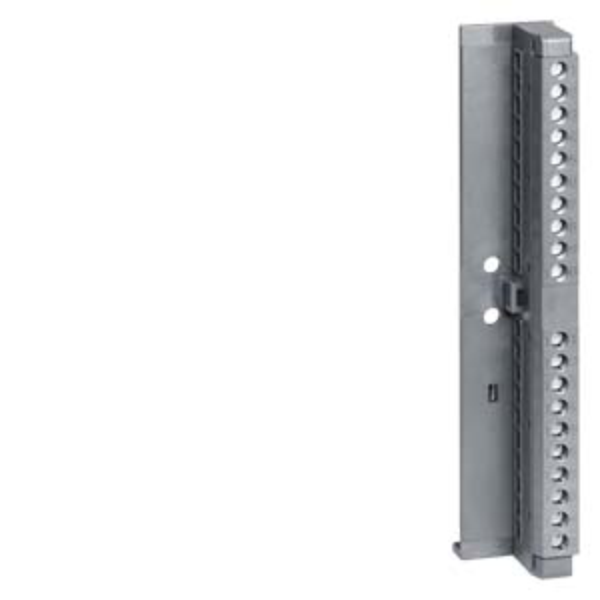

SIEMENS SIMATIC S7-300 Front connector, 20-pin, with screw contacts, 1 unit
SKU: 6ES7392-1AJ00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This front connector is used to interface field wiring with S7-300 signal modules.
It features screw-type terminals for robust mechanical connections and supports single or dual-conductor ferrule combinations, making it ideal for industrial environments where durability and serviceability are key.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Front connector (screw contact).
Number of Poles: 20.
Connection Method: Screw terminals.
Wire Type: Solid or flexible (with/without ferrules).
Supported Wire Sizes: 0.25–1.5 mm² (AWG 24–16).
Stripped Length: 6 mm.
Tightening Torque: 0.4–0.7 Nm.
Mounting Tool: 3–3.5 mm conical screwdriver.
Dimensions (W×H×D): 23 × 131 × 36 mm.
Weight: ~70 g.
Operating Temp: 0 to +60 °C.
Storage Temp: –40 to +70 °C.
Compatibility: S7-300 signal modules.
Compliance & Classification:
CE, UKCA, RCM, ATEX, IECEx.
Marine Approvals: PRS.
eClass: 27-24-22-92.
ETIM: EC002584.
UNSPSC: 32-15-17-03.
